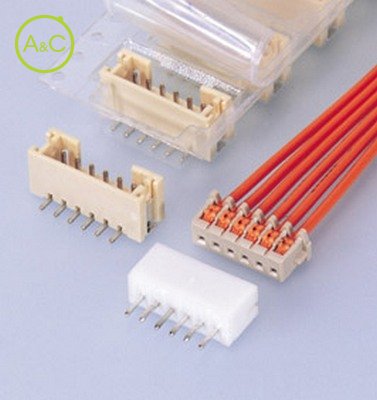

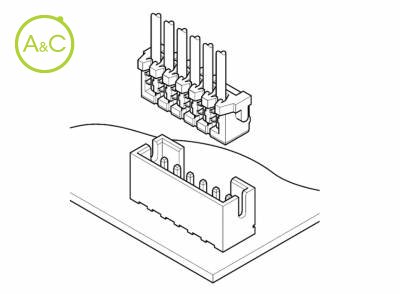

Receptacle for CR Connector

  • CR CONNECTOR
Download Datenblatt

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
Article Number 02CR-6H-P
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 2mm Pitch Disconnectable IDC
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.00 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 100 V
Pcb Mount Style Through-hole Technology (THT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
The CR 2.0mm (.079") insulation displacement connector features a mounting height as low as 6.9mm (.272") and a thickness as thin as 4.8mm (.189") (for top entry type). It is suitable for interconnection of UL1007 electric wires in a wide range of electrical and electronic equipment such as VCRs and video cameras. Designed for connection of UL1007 wires The 2.0mm (.0179") pitch insulation displacement connector allows automatic harness production for connection of UL1007 wires. Folded beam double-leaf contact construction The contact springs are folded to increase their effective strength. This design provides a safety margin that allows the contacts to endure the distortion of misinsertion without being permanently distorted. Twin U-slot insulation displacement section The insulation displacement section connected to the wire consists of two tin-plated slots (twin U-slot) for high reliability. Strain relief The strain relief feature prevents stress caused by vibration, impact or bending from effecting the insulation displacement connection. This is accomplished by holding the outside of the wire with the insulation gripping device on the housing. To protect circuit integrity from vibration and undue tension, ample clearance is provided between the insulation displacement connection and the strain relief. Interchangeability The shrouded headers of the top and side entry type CR connectors are interchangeable with the KR and KRD insulation displacement and PH crimp style connectors. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
