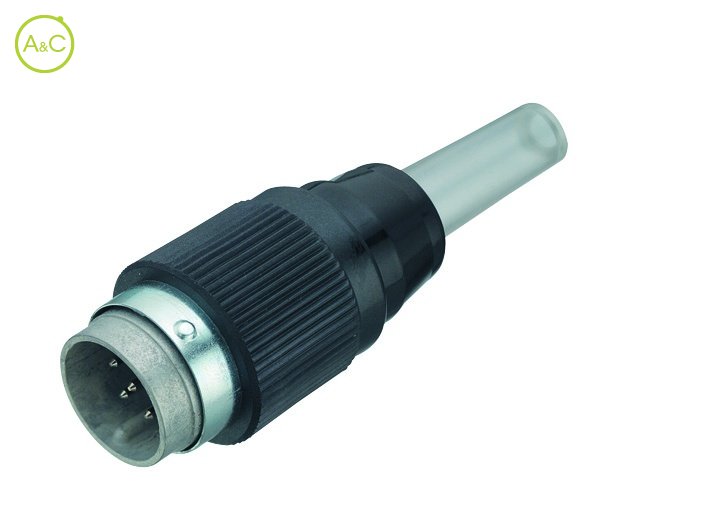

Male cable connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Binder
Number Of Poles
- 3
- 5
- 7
- 12
Article Number | 09 0055 00 03 |

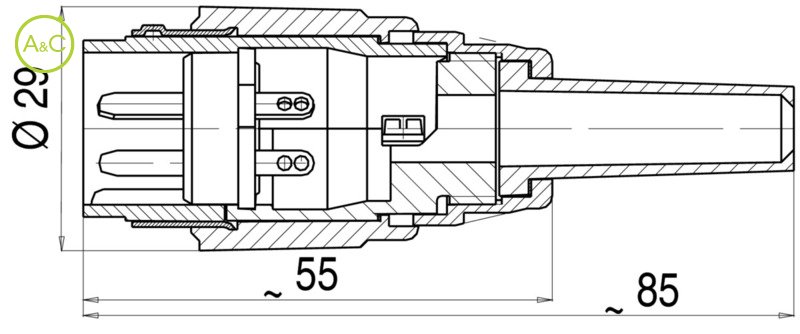

Connector Diameter | 29 mm |
Number Of Contacts | 3 contacts |
Connector Locking System | Bayonet |
Termination | Solder |
Wire Section | 2.5 mm² |
Protection Degree | IP40 |
Mating Cycles | >500 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 250 |
Rated Impuls Voltage | 2500 V |
Pollution Degree | 1 |
Overvoltage Categorie | II |
Material Group | III |
Rated Current (40°) | 10 A |
Max. Contact Resistance | 5 mΩ |
Material Of Contact | CuZn (Brass) |
Plating | Ag (Silver) |
Material Of Insert | PET (UL 94 V-0) |
Material Of Housing | GD-Al (anodized) |
Cable Outlet | 5-8 mm |
Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
