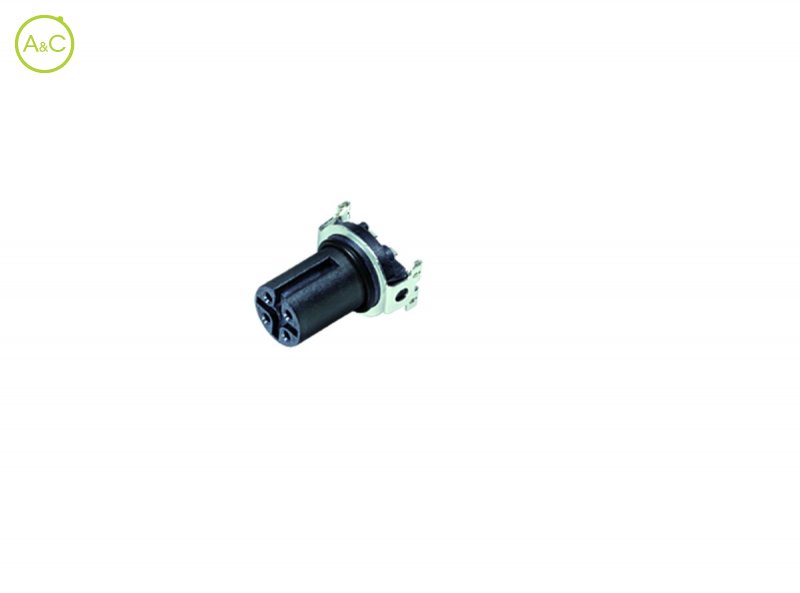

Female panel mount connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Binder
Number Of Poles
- 4
- 5
- 8
Article Number | 09 0432 601 04 |

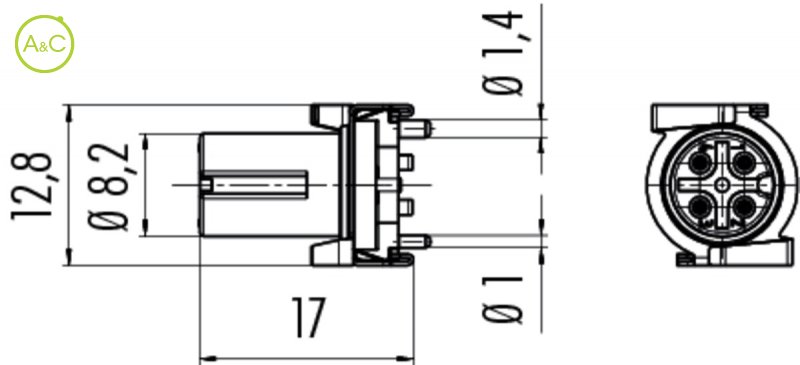

Connector Diameter | 8.2 mm |
Number Of Contacts | 4 contacts |
Connector Locking System | Screw (M12-A) |
Termination | SMT |
Protection Degree | IP67 |
Mating Cycles | >100 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 250 |
Rated Impuls Voltage | 2500 V |
Pollution Degree | 3 |
Overvoltage Categorie | II |
Material Group | III |
Rated Current (40°) | 4 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Au (Gold) |
Material Of Insert | LCP - GF30 |
Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
