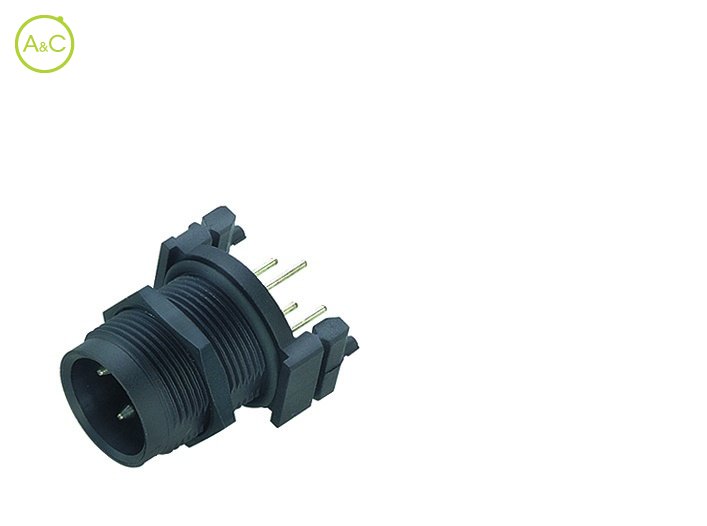

Male socket

  • Dip solder, front fastened

Number Of Poles

  • 4
  • 4 (UL)
Article Number 09 0441 90 04

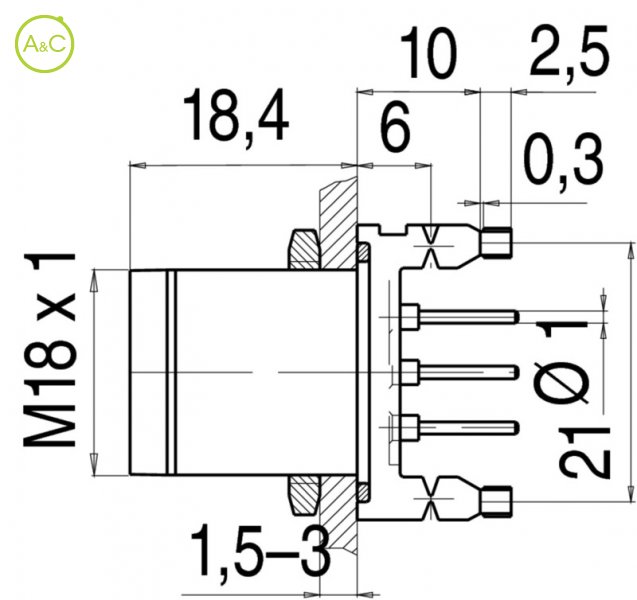

Connector Diameter 21 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M18)
Termination Dip solder
Wire Section 1.5 mm²
Protection Degree IP67
Mating Cycles >50 times
Upper Temperature +85 °C
Lower Temperature -25 °C
Rated Voltage 250
Rated Impuls Voltage 4000 V
Pollution Degree 3
Overvoltage Categorie III
Material Group III
Rated Current (40°) cUR 5 A
Max. Contact Resistance 8 mΩ
Material Of Contact CuZn (Brass)
Plating CuSnZn (Optalloy), Sn (Tin)
Material Of Insert PBT/PA
Material Of Housing PBT/PA
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
