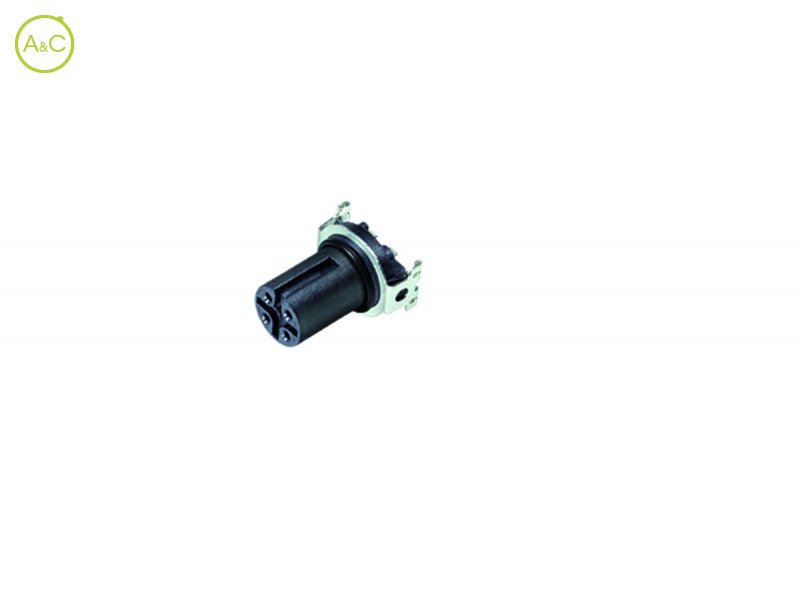

Female panel mount connector

  • SMT, Shieldable

Number Of Poles

  • 4
  • 5
Article Number 09 0442 601 04

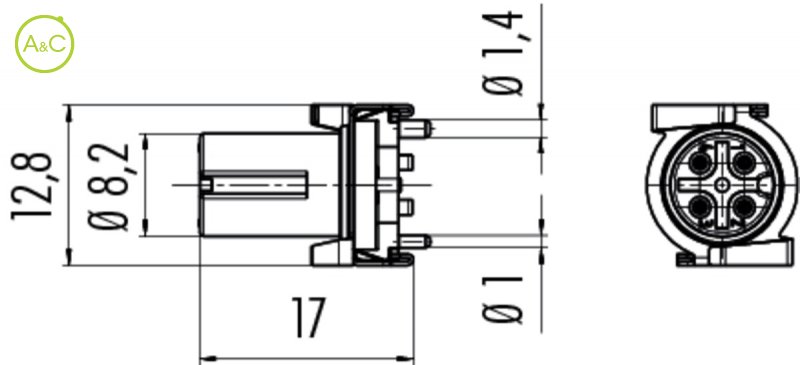

Connector Diameter 8.2 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-B)
Termination SMT
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group III
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
