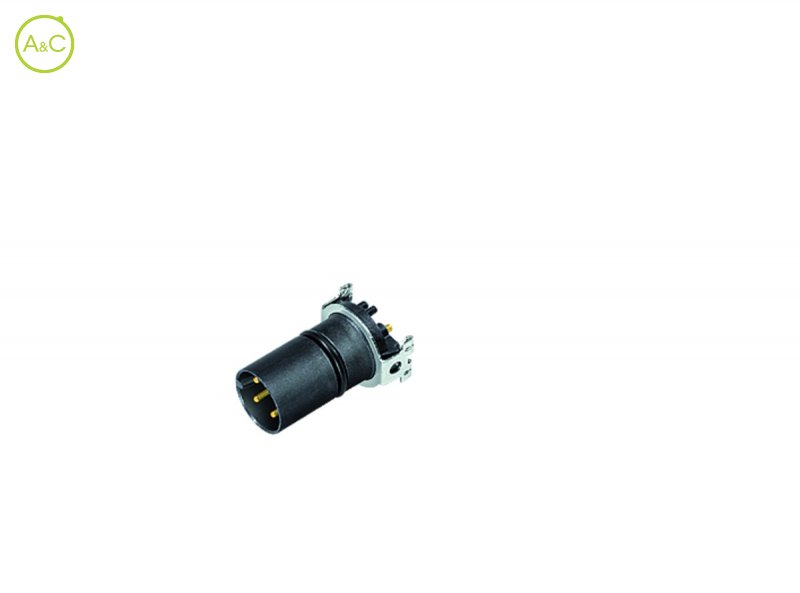

Male panel mount connector

  • SMT, Shieldable

Number Of Poles

  • 4
Article Number 09 0731 601 04
Connector Diameter 9.45 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-D)
Termination SMT
Protection Degree IP67
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Rated Current (40°) 4 A
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert LCP
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
