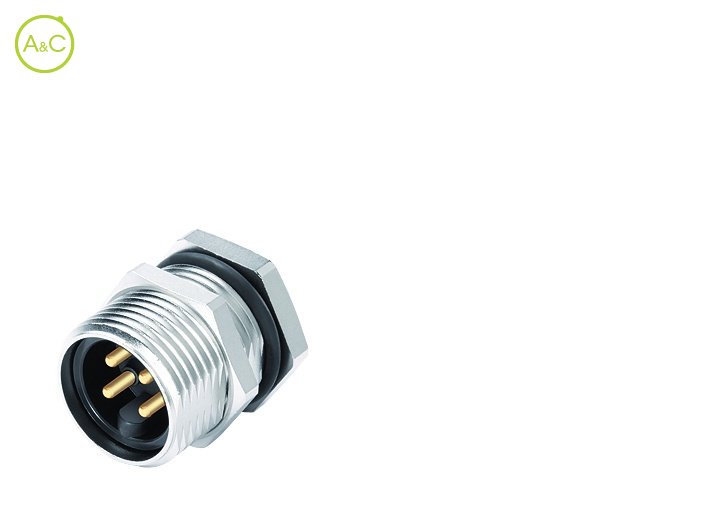

Male panel mount connector

Haben Sie Fragen zu diesem Produkt?

Weitere Informationen über diese Marke:

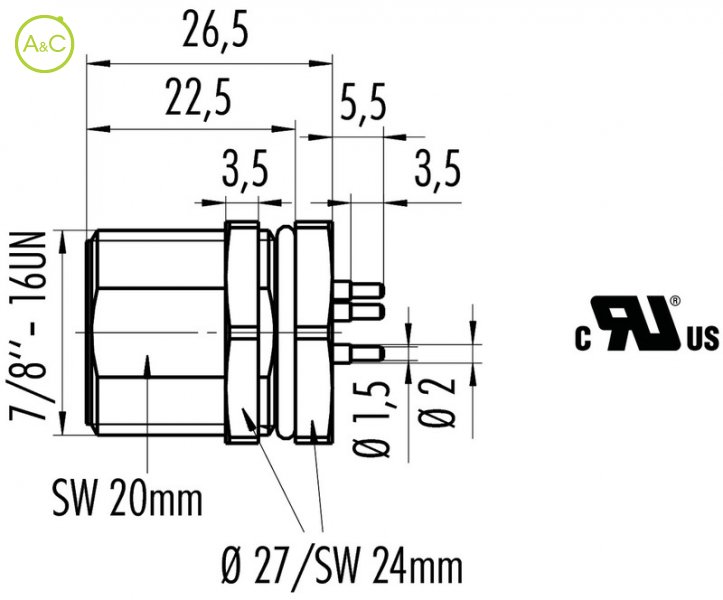

Article Number	09 2447 180 03
Connector Diameter	27 mm
Number Of Contacts	2+PE contacts
Connector Locking System	Screw (7/8"-16 UN)
Termination	Dip solder
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	300 (UL 600)
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	III
Material Group	III
Rated Current (40°)	10 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PUR (UL 94 HB)
Material Of Housing	Brass nickel plated / zinc diecasting nickel plated
Datenblatt	Download Datenblatt

Article Number	09 2449 180 04
Connector Diameter	27 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (7/8"-16 UN)
Termination	Dip solder
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	300 (UL 600)
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	III
Material Group	III
Rated Current (40°)	8 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PUR (UL 94 HB)
Material Of Housing	Brass nickel plated / zinc diecasting nickel plated
Datenblatt	Download Datenblatt

Article Number	09 2451 180 05
Connector Diameter	27 mm
Number Of Contacts	4+PE contacts
Connector Locking System	Screw (7/8"-16 UN)
Termination	Dip solder
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	300 (UL 600)
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	III
Material Group	III
Rated Current (40°)	8 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PUR (UL 94 HB)
Material Of Housing	Brass nickel plated / zinc diecasting nickel plated
Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
