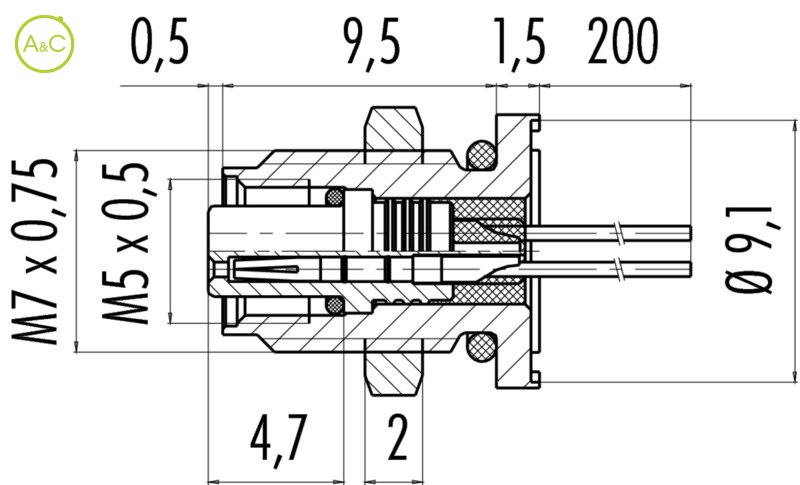

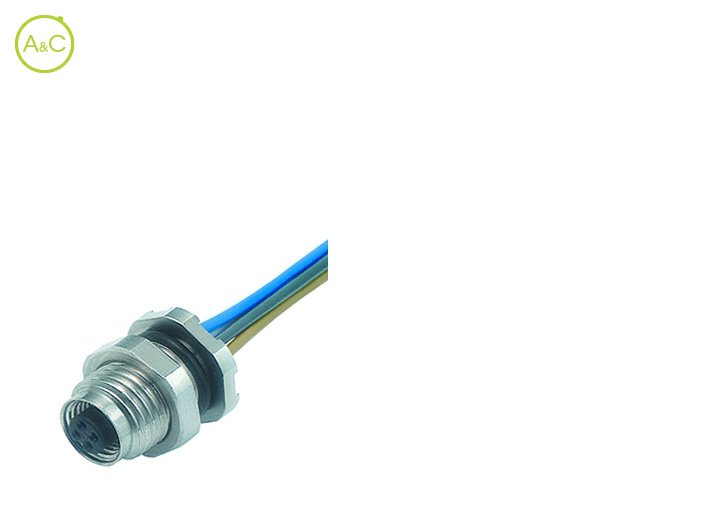

Female panel mount connector

  • With single wires front fastened

Number Of Poles

  • 3
  • 4
Article Number 09 3106 86 03
Number Of Contacts 3 contacts
Connector Locking System Screw (M5)
Termination Assembled with single wires
Wire Section 0.14 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +80 °C
Lower Temperature -25 °C
Rated Voltage 60
Rated Impuls Voltage 800 V
Pollution Degree 3
Overvoltage Categorie II
Material Group I
Rated Current (40°) 1 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing CuZn (Brass nickel plated)
Cable Diameter 3,1 mm
Cable Jacket Material PUR
Insulation Wire PVC
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
