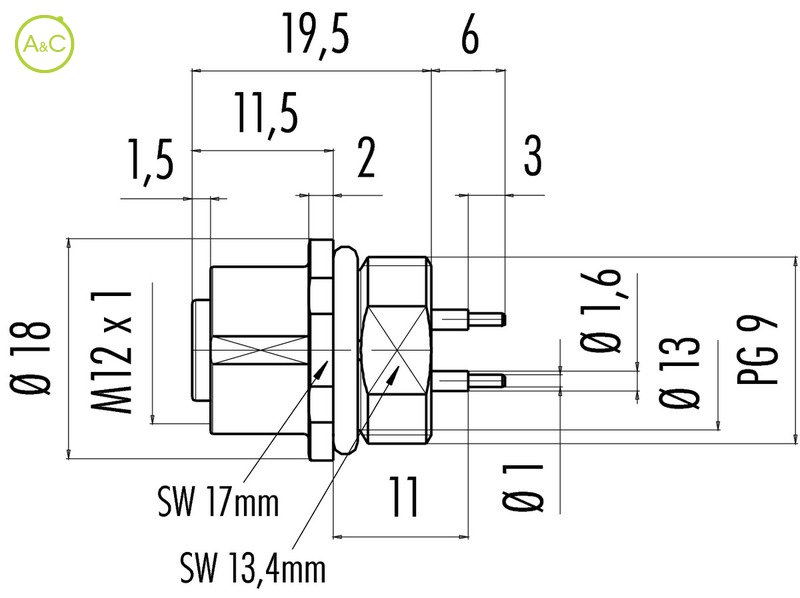

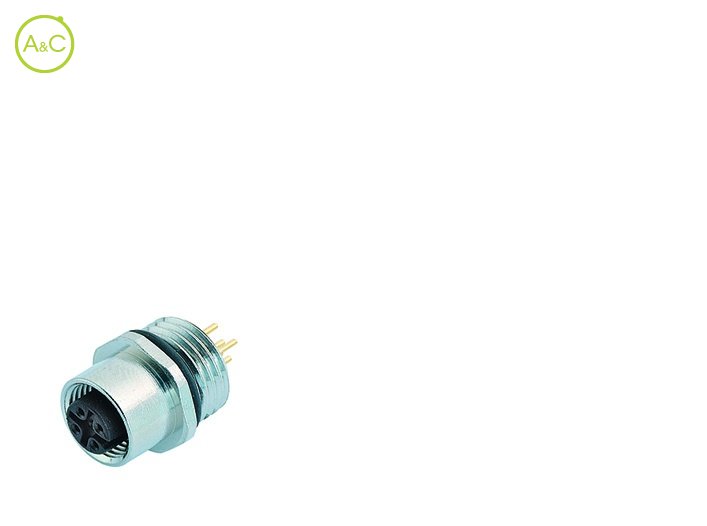

Female panel mount connector

Haben Sie Fragen zu diesem Produkt?

Weitere Informationen über diese Marke:

Article Number	86 0132 0000 00004	86 0232 0000 00004
Old Article Number	09 3432 88 04
Connector Diameter	18 mm	18 mm
Number Of Contacts	4 contacts	4 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Dip solder	Dip solder
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP68	IP68
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	250	250
Rated Impuls Voltage	2500 V	2500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA	PA
Material Of Housing	Zinc diecasting nickel plated	Zinc diecasting nickel plated
Fixing Thread	PG9	PG9
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	86 0132 0000 00005	86 0232 0000 00005
Old Article Number	09 3442 88 05
Connector Diameter	18 mm	18 mm
Number Of Contacts	5 contacts	5 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Dip solder	Dip solder
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP68	IP68
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA	PA
Material Of Housing	Zinc diecasting nickel plated	Zinc diecasting nickel plated
Fixing Thread	PG9	PG9
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	86 0132 0000 00008	86 0232 0000 00008
Old Article Number	09 3482 77 08
Connector Diameter	18 mm	18 mm
Number Of Contacts	8 contacts	8 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Dip solder	Dip solder
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP68	IP68
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	60	60
Rated Impuls Voltage	800 V	800 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA	PA
Material Of Housing	Zinc diecasting nickel plated	Zinc diecasting nickel plated
Fixing Thread	PG9	PG9
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	86 0132 0100 00012	86 0232 0100 00012
Old Article Number	99 3442 88 05
Connector Diameter	18 mm	18 mm
Number Of Contacts	12 contacts	12 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Dip solder	Dip solder
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP68	IP68
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	30	30
Rated Impuls Voltage	800 V	800 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA	PA
Material Of Housing	Zinc diecasting nickel plated	Zinc diecasting nickel plated
Fixing Thread	PG9	PG9
Datenblatt	Download Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
