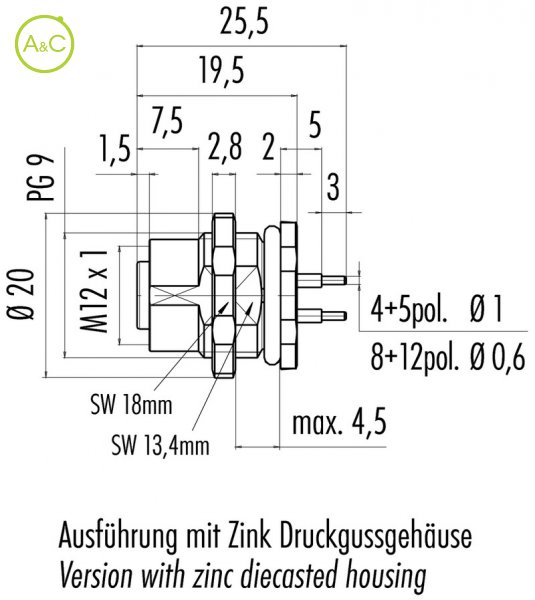

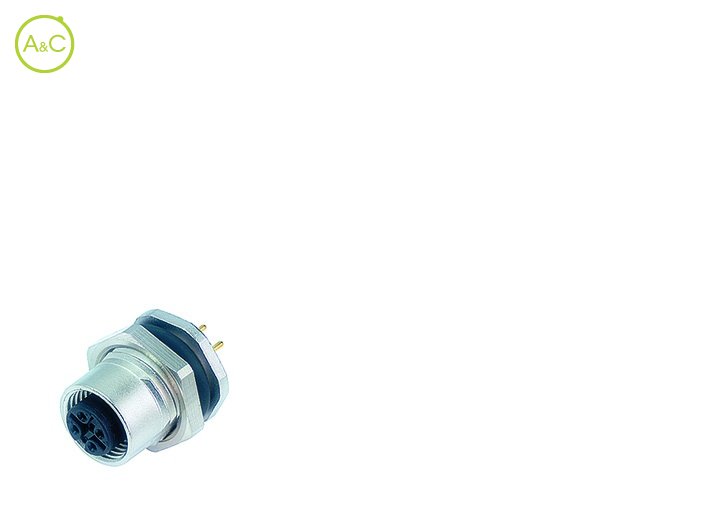

Female panel mount connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Binder
Number Of Poles
- 4
- 5
- 5 VA/stainless steel
- 8
- 8 VA/stainless steel
- 12
Article Number | 86 0532 1000 00004 |
Old Article Number | 09 3432 90 04 |
Connector Diameter | 20 mm |
Number Of Contacts | 4 contacts |
Connector Locking System | Screw (M12-A) |
Termination | Dip solder |
Protection Degree | IP68 |
Mating Cycles | >100 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 250 |
Rated Impuls Voltage | 2500 V |
Pollution Degree | 3 |
Overvoltage Categorie | II |
Material Group | II |
Rated Current (40°) | 4 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Au (Gold) |
Material Of Insert | PA |
Material Of Housing | Zinc diecasting nickel plated |
Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
