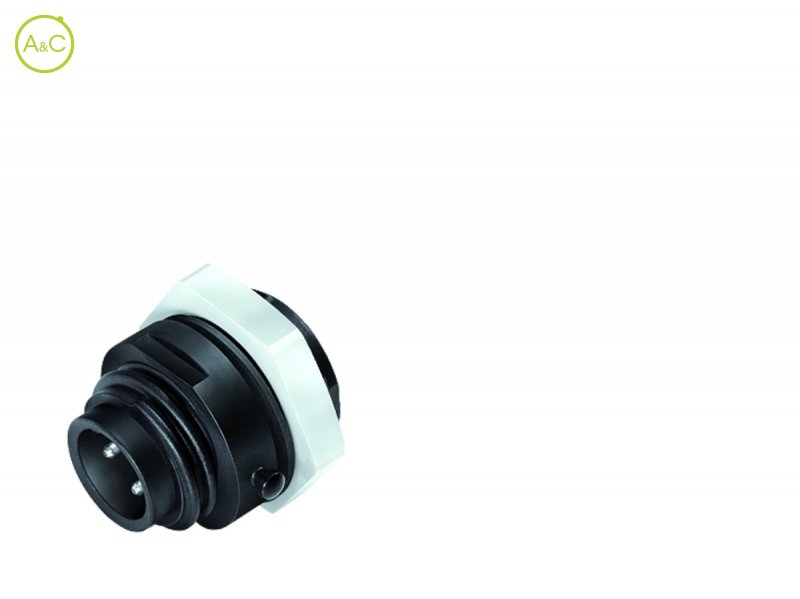

Male panel mount connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Binder
Number Of Poles
- 3+PE
Article Number | 09 4223 150 04 |

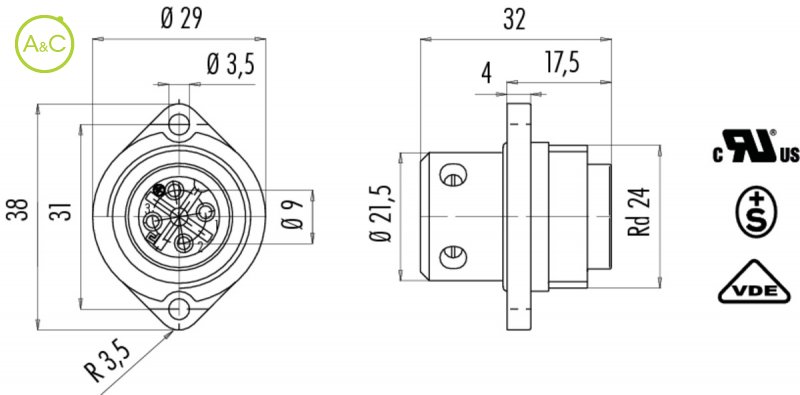

Connector Diameter | 29 mm |
Number Of Contacts | 3+PE contacts |
Connector Locking System | Screw (RD24) |
Termination | Screw |
Wire Section | 1,5 - 2,5 mm² |
Protection Degree | IP67 |
Mating Cycles | >500 times |
Upper Temperature | +100 °C |
Lower Temperature | -40 °C |
Rated Voltage | 600 |
Rated Impuls Voltage | 6000 V |
Pollution Degree | 3 |
Overvoltage Categorie | III |
Material Group | III |
Rated Current (40°) | 16 (12 A UL) A |
Max. Contact Resistance | 5 mΩ |
Material Of Contact | CuZn (Brass) |
Plating | Ag (Silver) |
Material Of Insert | PBT |
Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
