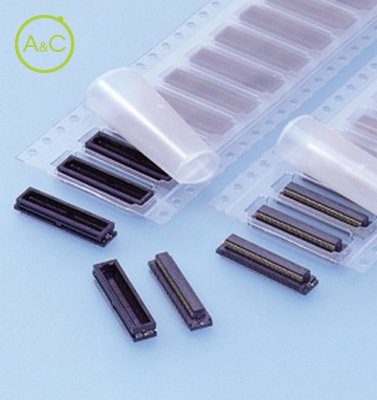

Receptacle for JAS connector

  • JAS CONNECTOR
Download Datenblatt

Number Of Poles

  • 80
  • 100
  • 120
Article Number 100R-JASKS-GWAN-TF 100R4.5-JASKS-GWAN-TF
Number Of Contacts 100 100
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
General Description 0.4mm Pitch Board-to-Board Connector 0.4mm Pitch Board-to-Board Connector
Connection Type Printed Circuit Board Connectors Printed Circuit Board Connectors
Pitch / Style 0.40 mm 0.40 mm
Rated Current (ac/dc) 0.3 A 0.3 A
Rated Voltage (ac/dc) 30 V 30 V
Pcb Mount Style Surface Mount Technology (SMT) Surface Mount Technology (SMT)
Remark Stacking heigt 4.0 mm Stacking heigt 4.5 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

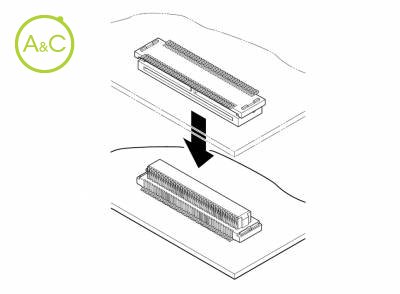

The plug housing consists of two separate parts. This allows the connector to be put under greater torsion strain than similar connectors without any damage being given to the solder joints. Both plug and receptacle have the double I type solder tabs, which reduces the stress by the distorted mating/unmating applied to the solder tails. RoHS Compliant
