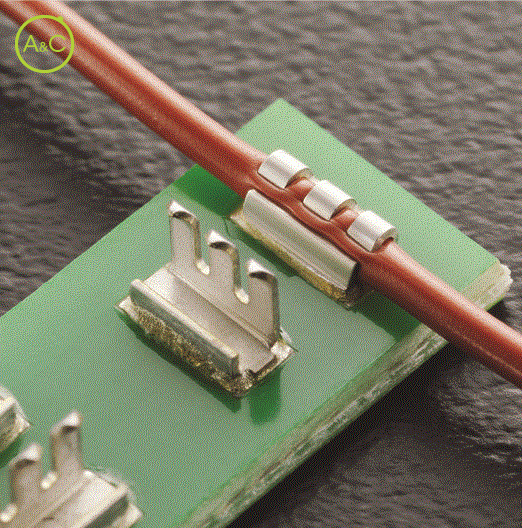

SMT Insulation Piercing Connectors

AWG 24

1307

1307

1307

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Packaging

Loose
Taped

Article Number	1307
Material Thickness / Type	0.010" (0,254 mm) C26000 Brass
Standard Finish	Pre-finished 100% Matte Tin over Copper. Edges will be bare. (16)
Current Rating Ul	3.5 amperes
Current Rating C-ul	3.5 amperes
Feeder System	Standard 16mm tape Feeder for PN 1307T
Ul File Number	E361770
Crimping System	Mini press (for high volume applications) Versa-Crimp (for low volume applications) WTC-1307-1 (for low volume and/or field terminations)
Wire Sizes + Insulation Outside Diameter	AWG 24: .045 in. (nominal)
Datenblatt	Download Datenblatt

Article Number	1307T
Material Thickness / Type	0.010" (0,254 mm) C26000 Brass
Standard Finish	Pre-finished 100% Matte Tin over Copper. Edges will be bare. (16)
Current Rating Ul	3.5 amperes
Current Rating C-ul	3.5 amperes
Feeder System	Standard 16mm tape Feeder for PN 1307T
Ul File Number	E361770
Crimping System	Mini press (for high volume applications) Versa-Crimp (for low volume applications) WTC-1307-1 (for low volume and/or field terminations)
Wire Sizes + Insulation Outside Diameter	AWG 24: .045 in. (nominal)
Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
