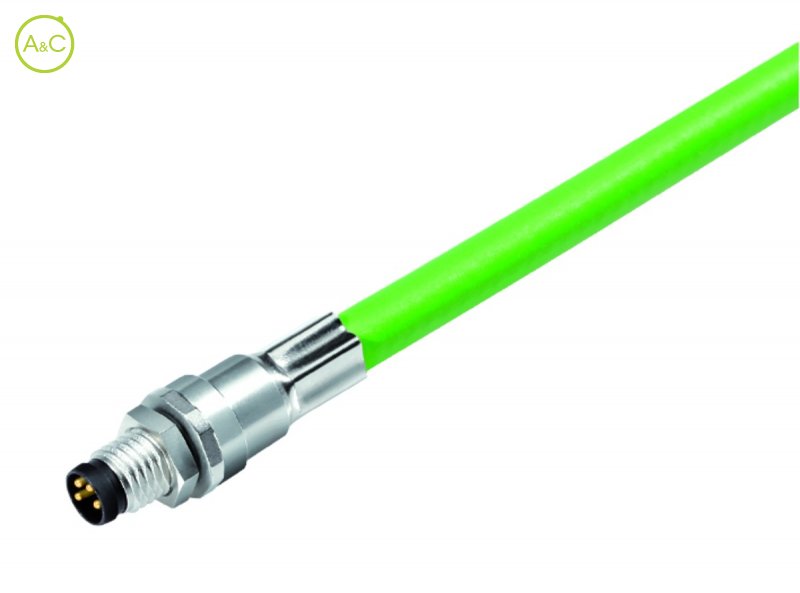

Male panel mount connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Binder
Number Of Poles
- 4
Article Number | 70 3421 005 04 |

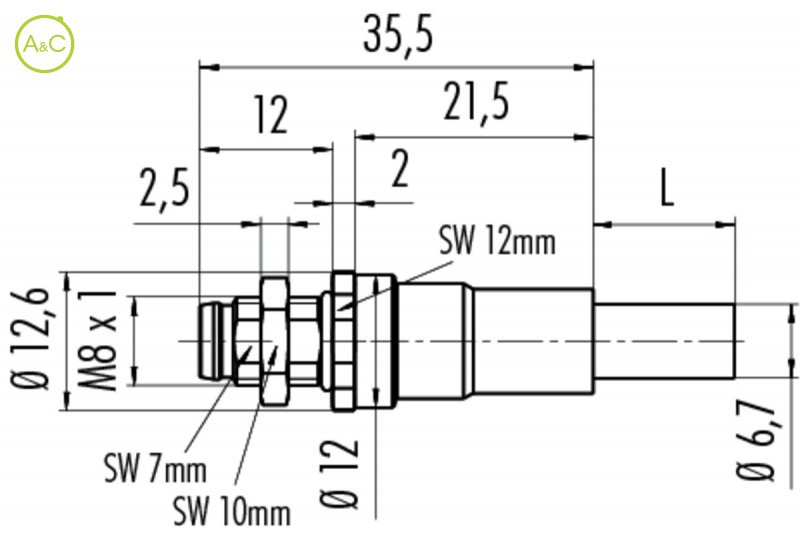

Connector Diameter | 12.6 mm |
Number Of Contacts | 4 contacts |
Connector Locking System | Screw (M8) |
Termination | Dip solder |
Cable Length | 0.5 mm |
Protection Degree | IP67 |
Mating Cycles | >50 times |
Upper Temperature | +60 °C |
Lower Temperature | -25 °C |
Rated Voltage | 60 |
Rated Impuls Voltage | 800 V |
Pollution Degree | 3 |
Overvoltage Categorie | II |
Material Group | II |
Rated Current (40°) | 4 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Au (Gold) |
Material Of Housing | PA, Zink Diecasting nickel plated, CuZn (Brass nickel plated) |
Insulation Single Lead | Polyolefin |
Single Lead Structure | 7x0,34 (AWG22) |
Cable Sheath Ø | 6.7 mm |
Conductor Resistance | 55 Ω/km |
Bending Radius Cable Fixed | min. 5xd |
Bending Radius Cable Movable | min.15xd |
Material Housing Of Cable | PUR green |
Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
