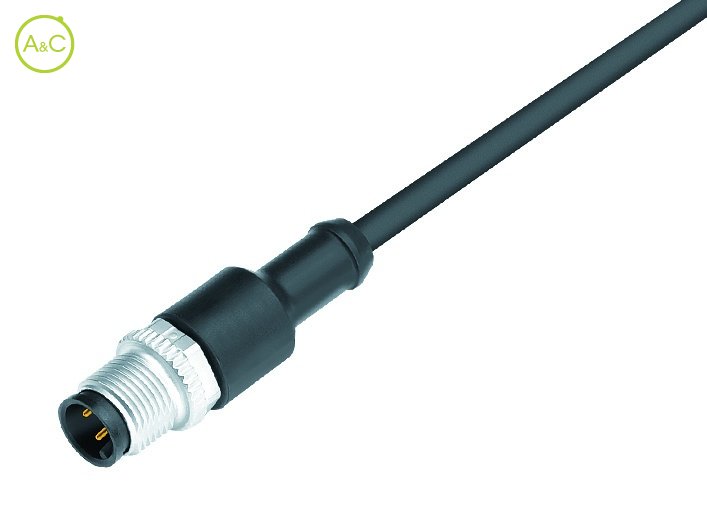

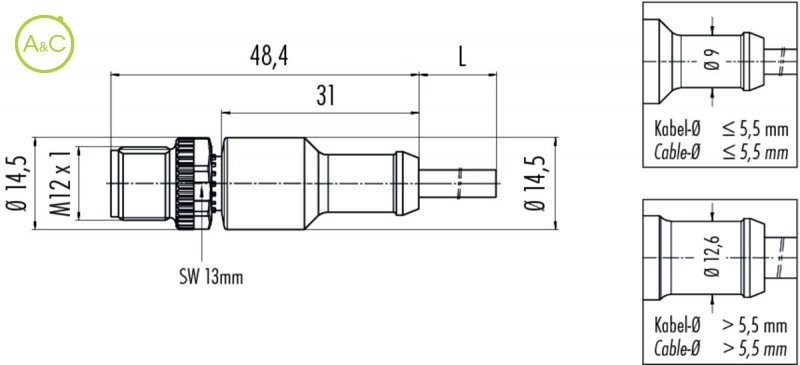

Male cable connector

Moulded

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Binder

Number Of Poles

Article Number	77 3429 0000 20003 0200	77 3429 0000 50003 0200	77 3429 0000 20003 0500	77 3429 0000 50003 0500
Old Article Number	79 3429 12 04	79 3429 32 04	79 3429 15 04	79 3429 35 04
Connector Diameter	14.5 mm	14.5 mm	14.5 mm	14.5 mm
Number Of Contacts	3 contacts	3 contacts	3 contacts	3 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)
Termination	Crimp, moulded	Crimp, moulded	Crimp, moulded	Crimp, moulded
Wire Section	0.34 mm²	0.34 mm²	0.34 mm²	0.34 mm²
Cable Length	2 mm	2 mm	5 mm	5 mm
Protection Degree	IP68	IP68	IP68	IP68
Mating Cycles	>100 times	>100 times	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C	-25 °C
Rated Voltage	250	250	250	250
Rated Impuls Voltage	2500 V	2500 V	2500 V	2500 V
Pollution Degree	3	3	3	3
Overvoltage Categorie	II	II	II	II
Material Group	II	II	II	II
Rated Current (40°)	4 A	4 A	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)	Au (Gold)	Au (Gold)
Material Of Insert	PUR	PUR	PUR	PUR
Material Of Housing	PUR	PUR	PUR	PUR
Cable Diameter	4,5 mm	4,5 mm	4,5 mm	4,5 mm
Cable Jacket Material	PVC	PUR	PVC	PUR
Insulation Wire	PVC	PVC	PVC	PVC
Datenblatt	Download Datenblatt	Download Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	77 3429 0000 20004 0200	77 3429 0000 50004 0200	77 3429 0000 20004 0500	77 3429 0000 50004 0500
Old Article Number	79 3429 13 04	79 3429 33 04	79 3429 17 04	79 3429 37 04
Connector Diameter	14.5 mm	14.5 mm	14.5 mm	14.5 mm
Number Of Contacts	4 contacts	4 contacts	4 contacts	4 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)
Termination	Crimp, moulded	Crimp, moulded	Crimp, moulded	Crimp, moulded
Wire Section	0.34 mm²	0.34 mm²	0.34 mm²	0.34 mm²
Cable Length	2 mm	2 mm	5 mm	5 mm
Protection Degree	IP68	IP68	IP68	IP68
Mating Cycles	>100 times	>100 times	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C	-25 °C
Rated Voltage	250	250	250	250
Rated Impuls Voltage	2500 V	2500 V	2500 V	2500 V
Pollution Degree	3	3	3	3
Overvoltage Categorie	II	II	II	II
Material Group	II	II	II	II
Rated Current (40°)	4 A	4 A	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)	Au (Gold)	Au (Gold)
Material Of Insert	PUR	PUR	PUR	PUR
Material Of Housing	PUR	PUR	PUR	PUR
Cable Diameter	5 mm	5 mm	5 mm	5 mm
Cable Jacket Material	PVC	PUR	PVC	PUR
Insulation Wire	PVC	PVC	PVC	PVC
Datenblatt	Download Datenblatt	Download Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	77 3429 0000 20005 0200	77 3429 0000 50005 0200	77 3429 0000 20005 0500	77 3429 0000 50005 0500
Old Article Number	79 3439 12 05	79 3439 32 05	79 3439 15 05	79 3439 35 05
Connector Diameter	14.5 mm	14.5 mm	14.5 mm	14.5 mm
Number Of Contacts	5 contacts	5 contacts	5 contacts	5 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)
Termination	Crimp, moulded	Crimp, moulded	Crimp, moulded	Crimp, moulded
Wire Section	0.25 mm²	0.25 mm²	0.25 mm²	0.25 mm²
Cable Length	2 mm	2 mm	5 mm	5 mm
Protection Degree	IP68	IP68	IP68	IP68
Mating Cycles	>100 times	>100 times	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C	-25 °C
Rated Voltage	125	125	125	125
Rated Impuls Voltage	1500 V	1500 V	1500 V	1500 V
Pollution Degree	3	3	3	3
Overvoltage Categorie	II	II	II	II
Material Group	II	II	II	II
Rated Current (40°)	4 A	4 A	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)	Au (Gold)	Au (Gold)
Material Of Insert	PUR	PUR	PUR	PUR
Material Of Housing	PUR	PUR	PUR	PUR
Cable Diameter	5 mm	5 mm	5 mm	5 mm
Cable Jacket Material	PVC	PUR	PVC	PUR
Insulation Wire	PVC	PVC	PVC	PVC
Datenblatt	Download Datenblatt	Download Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	77 3429 0000 50608 0200	77 3429 0000 50608 0500	77 3429 0000 50708 0200	77 3429 0000 50708 0500	77 3429 0000 20708 0200	77 3429 0000 20708 0500
Old Article Number	79 3479 32 08	79 3479 35 08
Connector Diameter	14.5 mm	14.5 mm	14.5 mm	14.5 mm	14.5 mm	14.5 mm
Number Of Contacts	*8 contacts	*8 contacts	*8 contacts	*8 contacts	*8 contacts	*8 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)
Termination	Crimp, moulded	Crimp, moulded	Crimp, moulded	Crimp, moulded	Crimp, moulded	Crimp, moulded
Wire Section	0.25 mm²	0.25 mm²	0.25 mm²	0.25 mm²	0.25 mm²	0.25 mm²
Cable Length	2 mm	5 mm	2 mm	5 mm	2 mm	5 mm
Protection Degree	IP68	IP68	IP68	IP68	IP68	IP68
Mating Cycles	>100 times	>100 times	>100 times	>100 times	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C	+85 °C	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Rated Voltage	60	60	600	600	600	600
Rated Impuls Voltage	800 V	800 V	800 V	800 V	800 V	800 V
Pollution Degree	3	3	3	3	3	3
Overvoltage Categorie	II	II	II	II	II	II
Material Group	II	II	II	II	II	II
Rated Current (40°)	2 A	2 A	2 A	2 A	2 A	2 A
Max. Contact Resistance	3 mΩ	3 mΩ	3 mΩ	3 mΩ	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)	Au (Gold)	Au (Gold)	Au (Gold)	Au (Gold)
Material Of Insert	PUR	PUR	PUR	PUR	PUR	PUR
Material Of Housing	PUR	PUR	PUR	PUR	PUR	PUR
Cable Diameter			6 mm	6 mm	6 mm	6 mm
Cable Jacket Material	PUR	PUR	PUR	PUR	PVC	PVC
Insulation Wire	PVC	PVC	PVC	PVC	PVC	PVC
Datenblatt	Download Datenblatt	Download Datenblatt	Download Datenblatt	Download Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	77 3429 0000 50712 0200	77 3429 0000 50712 0500	77 3429 0000 20712 0200	77 3429 0000 20712 0500
Old Article Number	79 3495 32 12	79 3495 35 12
Connector Diameter	14.5 mm	14.5 mm	14.5 mm	14.5 mm
Number Of Contacts	12 contacts	12 contacts	12 contacts	12 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)
Termination	Crimp, moulded	Crimp, moulded	Crimp, moulded	Crimp, moulded
Wire Section	0.25 mm²	0.25 mm²	0.25 mm²	0.25 mm²
Cable Length	2 mm	5 mm	2 mm	5 mm
Protection Degree	IP68	IP68	IP68	IP68
Mating Cycles	>100 times	>100 times	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C	-25 °C
Rated Voltage
Rated Impuls Voltage
Pollution Degree	3	3	3	3
Overvoltage Categorie	II	II	II	II
Material Group	II	II	II	II
Rated Current (40°)	2 A	2 A	2 A	2 A
Max. Contact Resistance	3 mΩ	3 mΩ	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)	Au (Gold)	Au (Gold)
Material Of Insert	PUR	PUR	PUR	PUR
Material Of Housing	PUR	PUR	PUR	PUR
Cable Diameter	7 mm	7 mm	7 mm	7 mm
Cable Jacket Material	PUR	PUR	PVC	PVC
Insulation Wire	PVC	PVC	PVC	PVC
Datenblatt	Download Datenblatt	Download Datenblatt	Download Datenblatt	Download Datenblatt
