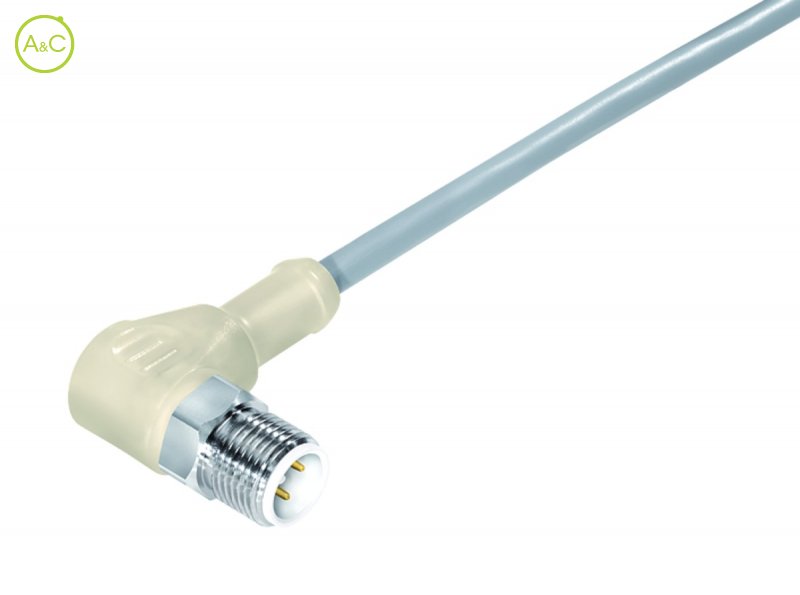

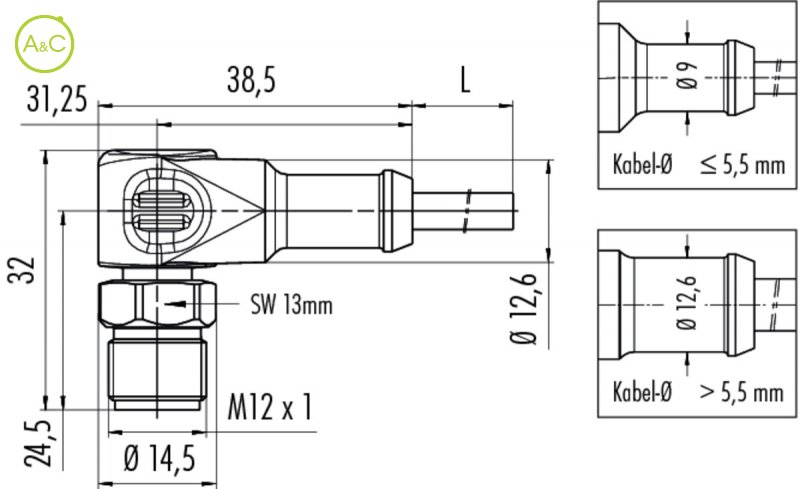

Male angled connector

  • overmoulded, stainless steel
  • PVC Cable, UL approval

Number Of Poles

  • 3
  • 4
  • 5
  • 8
  • 12
Article Number 77 3727 0000 20403 0200 77 3727 0000 20403 0500
Color Grey Grey
Connector Diameter 14.5 mm 14.5 mm
Number Of Contacts 3 contacts 3 contacts
Connector Locking System Screw (M12-A) Screw (M12-A)
Termination Crimp, overmoulded on cable Crimp, overmoulded on cable
Wire Section 0.34 mm² 0.34 mm²
Protection Degree IP69K IP69K
Mating Cycles >100 times >100 times
Upper Temperature +105 °C +105 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group II II
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PP PP
Material Of Housing PP PP
Insulation Single Lead PVC PVC
Single Lead Structure 32x0,1 32x0,1
Cable Sheath Ø 4.5 mm 4.5 mm
Conductor Resistance 57 Ω/km 57 Ω/km
Bending Radius Cable Fixed Min. 5xD Min. 5xD
Bending Radius Cable Movable min. 10xD min. 10xD
Wire Gauge 22 AWG 22 AWG
Material Housing Of Cable PVC PVC
