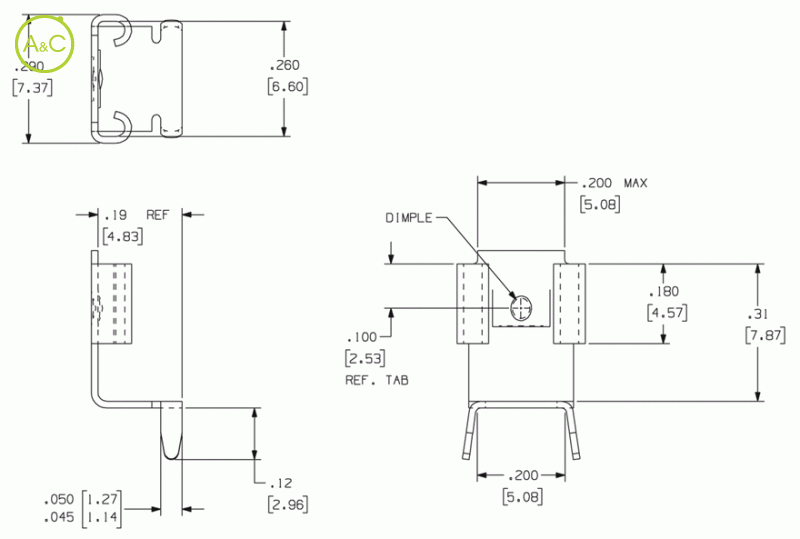

0.250” (6.35mm) Tab Receptacles

Mating type Vertical

983

983

983

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Current Rating

10 Amperes
15 Amperes

Article Number	983
Packaging	Loose
Mating Terminal Size	0.250" x 0.016" (6.35mm x 0.41mm) Tin/Brass Male
Material Thickness / Type	0.015" (0.38mm) C26000 Brass
Standard Finish	100% Tin over Copper
Mating Type	Vertical
Mounting Type	Outward or Inward Splay
Mounting Hole Diameter	2 holes 0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.005" (5.08mm ±0.127mm) centers
Resistance Rating	10mOhm Max
Mating Entry	Top Side
Temperature Rating	-65° to 85°C
Pieces Per Reel (loose Part No.)	NA
Datenblatt	Download Datenblatt

Article Number	984
Packaging	Loose
Mating Terminal Size	0.250" x 0.032" (6.35mm x 0.81mm) Tin/Brass Male
Material Thickness / Type	0.015" (0.38mm) C26000 Brass
Standard Finish	100% Tin over Copper
Mating Type	Vertical
Mounting Type	Outward or Inward Splay
Mounting Hole Diameter	2 holes 0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.005" (5.08mm ±0.127mm) centers
Resistance Rating	10mOhm Max
Mating Entry	Top Side
Temperature Rating	-65° to 85°C
Pieces Per Reel (loose Part No.)	NA
Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
