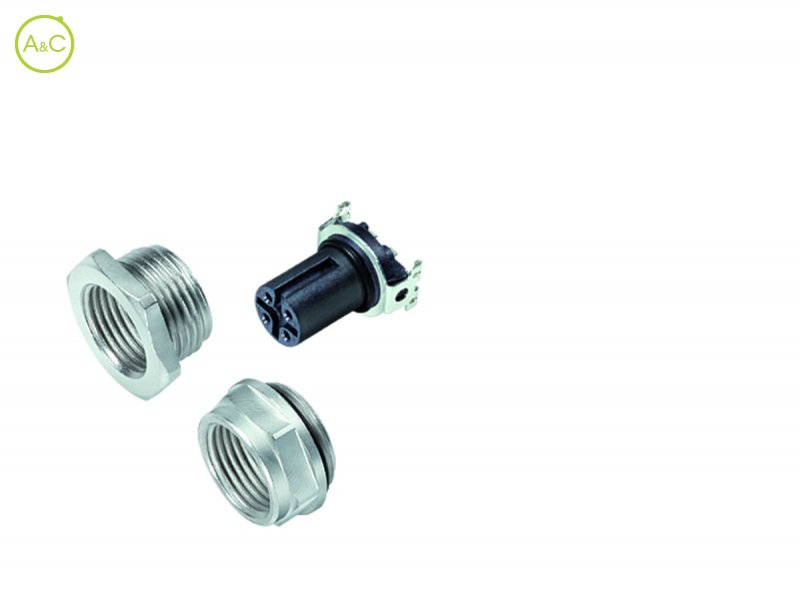

Female panel mount connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Binder
Number Of Poles
- 4
- 5
- 8
Article Number | 99 3432 401 04 | 99 3432 402 04 |
Connector Diameter | 19 mm | 19 mm |
Number Of Contacts | 4 contacts | 4 contacts |
Connector Locking System | Screw (M12-A) | Screw (M12-A) |
Termination | SMT | SMT |
Protection Degree | IP67 | IP67 |
Mating Cycles | >100 times | >100 times |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -40 °C | -40 °C |
Rated Voltage | 250 | 250 |
Rated Impuls Voltage | 2500 V | 2500 V |
Pollution Degree | 3 | 3 |
Overvoltage Categorie | II | II |
Material Group | III | III |
Rated Current (40°) | 4 A | 4 A |
Max. Contact Resistance | 3 mΩ | 3 mΩ |
Material Of Contact | CuSn (Bronze) | CuSn (Bronze) |
Plating | Au (Gold) | Au (Gold) |
Material Of Insert | LCP - GF30 | LCP - GF30 |
Datenblatt | Download Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
