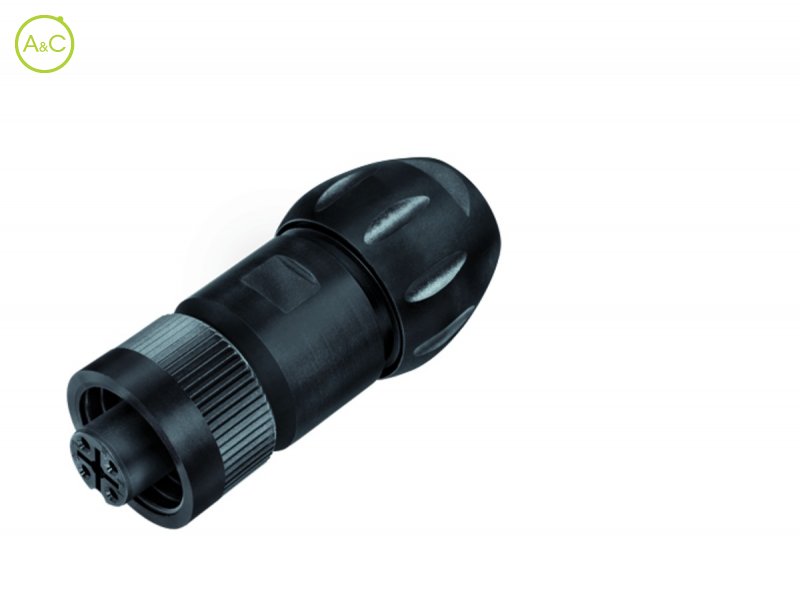

Female cable connector

Cable outlet 7-17 mm

99-4222-300-04

99-4222-300-04

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Number Of Poles

3+PE
6+PE

Article Number	99 4222 300 04

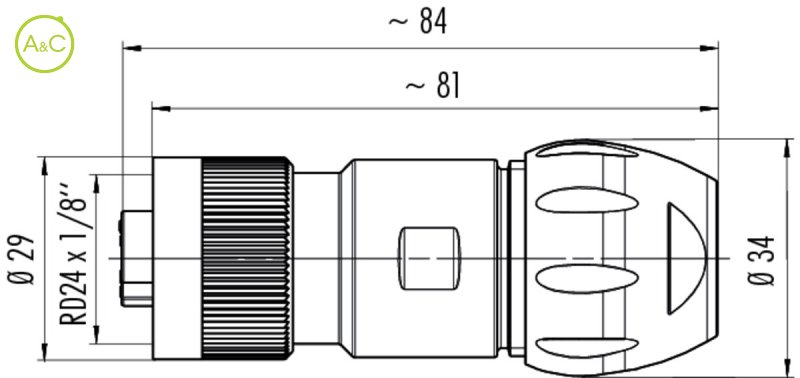

Connector Diameter	29 mm
Number Of Contacts	3+PE contacts
Connector Locking System	Bolted
Wire Section	0,5-2,5 mm²
Protection Degree	IP67
Mating Cycles	>50 times
Upper Temperature	+100 °C
Lower Temperature	-40 °C
Rated Voltage	400
Rated Impuls Voltage	6000 V
Pollution Degree	3
Overvoltage Categorie	III
Material Group	III
Rated Current (40°)	16 A
Max. Contact Resistance	≤ 5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Ag (Silver)
Material Of Insert	PBT
Material Of Housing	PBT
Cable Outlet	7-17 mm
Wire Gauge	20-14 AWG
Datenblatt	Download Datenblatt

Article Number	99 4226 300 07	99 4218 300 07	99 4202 300 07
Connector Diameter	29 mm	29 mm	29 mm
Number Of Contacts	6+PE contacts	6+PE contacts	6+PE contacts
Connector Locking System	Bolted	Bolted	Bolted
Wire Section	max. 0,75 mm²	0,34-1,5 mm²	0,14-1,5 mm²
Protection Degree	IP67	IP67	IP67
Mating Cycles	>50 times	>50 times	>50 times
Upper Temperature	+100 °C	+100 °C	+100 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	250	250	250
Rated Impuls Voltage	4000 V	4000 V	4000 V
Pollution Degree	3	3	3
Overvoltage Categorie	III	III	III
Material Group	III	III	III
Rated Current (40°)	10 A	10 A	10 A
Max. Contact Resistance	≤ 5 mΩ	≤ 5 mΩ	≤ 5 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)	CuSn (Bronze)
Plating	Ag (Silver)	Ag (Silver)	Ag (Silver)
Material Of Insert	PBT	PBT	PBT
Material Of Housing	PBT	PBT	PBT
Cable Outlet	7-17 mm	7-17 mm	7-17 mm
Wire Gauge	max. 20 AWG	22-16 AWG	26-16 AWG
Datenblatt	Download Datenblatt	Download Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
