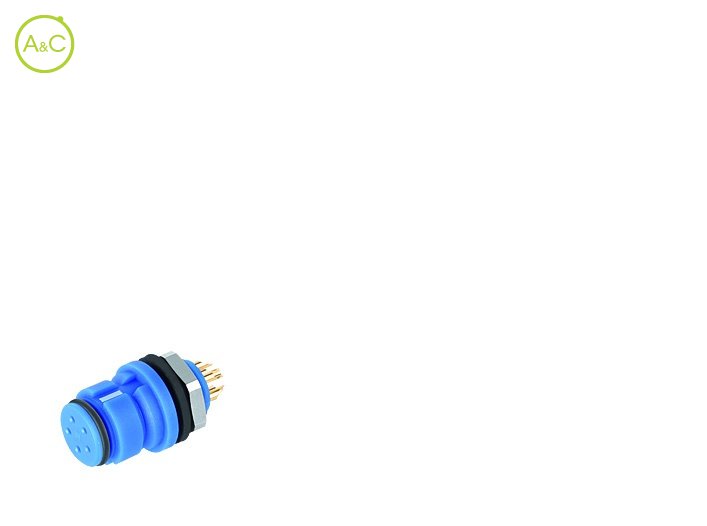

Female panel mount connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Binder
Number Of Poles
- 3
- 4
- 5
- 8
Article Number | 99 9208 060 03 |

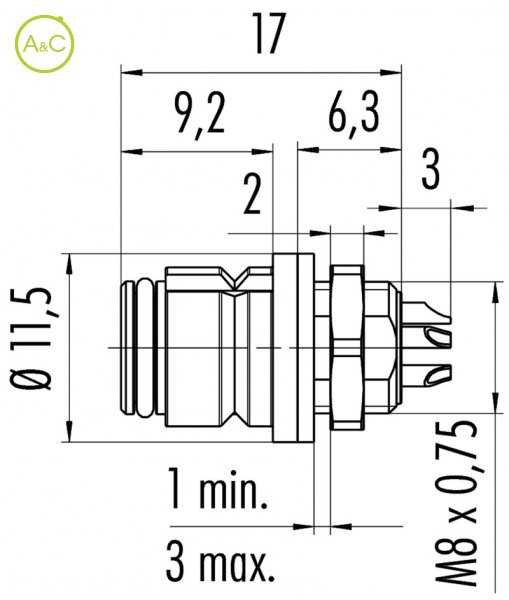

Connector Diameter | 11.5 mm |
Number Of Contacts | 3 contacts |
Connector Locking System | Snap-in |
Termination | Solder |
Wire Section | 0.25 mm² |
Protection Degree | IP67 |
Mating Cycles | >500 times |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
Rated Voltage | 125 |
Rated Impuls Voltage | 1500 V |
Pollution Degree | 2 |
Overvoltage Categorie | II |
Material Group | II |
Rated Current (40°) | 3 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Au (Gold) |
Material Of Insert | PA (UL 94 V-0) |
Material Of Housing | PA (UL 94 V-0) |
Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
