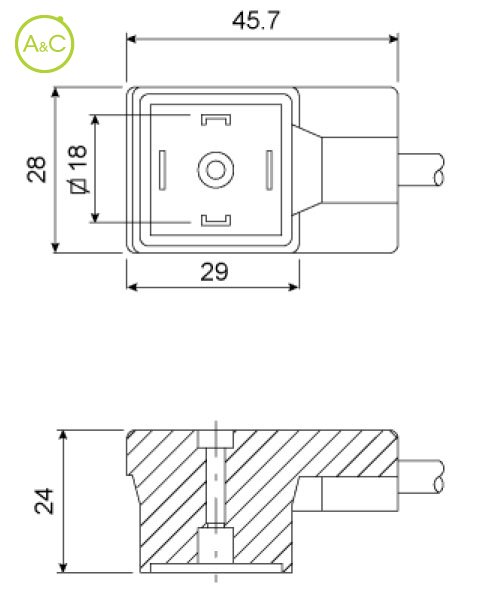

Style A square connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Shield
Shield
Housing Material
- PUR
| Article Number | CA53 83A2T 507 3000 0 |
| Protection Degree | IP67 |
| Upper Temperature | +70 °C |
| Lower Temperature | -5 °C |
| Circuits | Current amplifier + yellow Led |
| Housing Oil Resistance | Very good |
| Housing Hardness | 90 shore A |
| Other Characteristics | M3 central screw material: zinc plated iron |
| Voltage Vdc | 10 to 30 |
| Max. Currrent | 3 A @40°C |
| Control Voltage | 10..30 Vdc |
| Control Current | 1mA @ 10V 3MA @ 30V A |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
