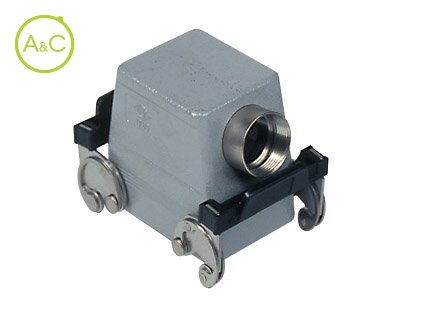

Hoods with 2 levers
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
Ilme
- General
| Article Number | CHO 50 X* |
| Protection Degree | IP66 |
| Material Housing | Aluminium |
| Height | 56 mm |
| Remark | May be combined with enclosures: CHI 50 CS; CHP 50 CS; MHP 50 CS |
| Length | 82 |
| Extra Information |
Corrosion resistant UV resistant With interlocking device |
| Coating Housing | With powder coating |
| Required Inserts | CD 50 P + PE; CDD 76 P + PE; CSAH 32 P + PE; CDA 32 P + PE; CDC 32 P + PE |
| Locking Mechanism | Double locking levers |
| Operation Lower Temperature | -40 °C |
| Operation Upper Temperature | 125 °C |
| Position Cable Feed | Side entry |
| Width | 71 mm |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
