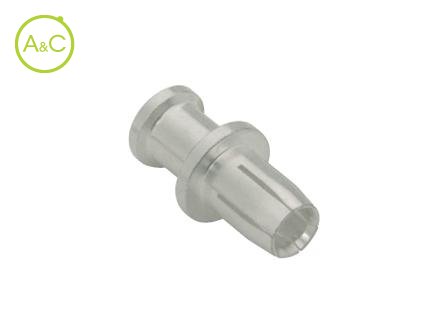

200A female crimp contacts

Haben Sie Fragen zu diesem Produkt?

Download Datenblatt

Weitere Informationen über diese Marke:

Article Number	CYFA 16
Connection Type	Crimp connection
Contact Type	Female
Extra Information	Massive contact
Ambient Lower Temperature	-40 °C
Ambient Upper Temperature	125 °C
Min. Cross Section Without End Sleeve	16 mm²
Max. Cross Section Without End Sleeve	16 mm²
Grooves	one groove (back side)
Diameter Male Contact	9.5 mm
Material Contact	Brass
Plating Of Contact	Silver
Max. Rated Current	200 A
Wire Strip Length	15 mm

Article Number	CYFA 25
Connection Type	Crimp connection
Contact Type	Female
Extra Information	Massive contact
Ambient Lower Temperature	-40 °C
Ambient Upper Temperature	125 °C
Min. Cross Section Without End Sleeve	25 mm²
Max. Cross Section Without End Sleeve	25 mm²
Grooves	with no grooves
Diameter Male Contact	9.5 mm
Material Contact	Brass
Plating Of Contact	Silver
Max. Rated Current	200 A
Wire Strip Length	15 mm

Article Number	CYFA 35
Connection Type	Crimp connection
Contact Type	Female
Extra Information	Massive contact
Ambient Lower Temperature	-40 °C
Ambient Upper Temperature	125 °C
Min. Cross Section Without End Sleeve	35 mm²
Max. Cross Section Without End Sleeve	35 mm²
Grooves	one groove
Diameter Male Contact	9.5 mm
Material Contact	Brass
Plating Of Contact	Silver
Max. Rated Current	200 A
Wire Strip Length	15 mm

Article Number	CYFA 50
Connection Type	Crimp connection
Contact Type	Female
Extra Information	Massive contact
Ambient Lower Temperature	-40 °C
Ambient Upper Temperature	125 °C
Min. Cross Section Without End Sleeve	50 mm²
Max. Cross Section Without End Sleeve	50 mm²
Grooves	two grooves
Diameter Male Contact	9.5 mm
Material Contact	Brass
Plating Of Contact	Silver
Max. Rated Current	200 A
Wire Strip Length	15 mm

Article Number	CYFA 70
Connection Type	Crimp connection
Contact Type	Female
Extra Information	Massive contact
Ambient Lower Temperature	-40 °C
Ambient Upper Temperature	125 °C
Min. Cross Section Without End Sleeve	70 mm²
Max. Cross Section Without End Sleeve	70 mm²
Grooves	with no grooves
Diameter Male Contact	9.5 mm
Material Contact	Brass
Plating Of Contact	Silver
Max. Rated Current	200 A
Wire Strip Length	15 mm

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

Zubehör

Heat shrink tube for CYFA/CYMA 16 contacts or for conductor with total external ø < 10 mm

Crimp matrixes for CY contacts section 16mm²

Crimping tool for 70A/100A/200A series contacts

Crimp matrixes for CY contacts section 25 mm² and 35 mm²

Crimp matrixes for CY contacts section 50mm²

Crimp matrixes for CY contacts section 70mm²

Locator for CY contacts
