Plug Housing For Socket Contact

  • RCY CONNECTOR
Download Datenblatt

Number Of Poles

  • 2
Article Number SYP-02T-1 SYP-02TV-1
Number Of Contacts 2 2
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
General Description 2.5mm Pitch Disconnectable Crimp Style 2.5mm Pitch Disconnectable Crimp Style
Connection Type Wire to Wire Connectors Wire to Wire Connectors
Pitch / Style 2.50 mm 2.50 mm
Rated Current (ac/dc) 3 A 3 A
Rated Voltage (ac/dc) 250 V 250 V
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

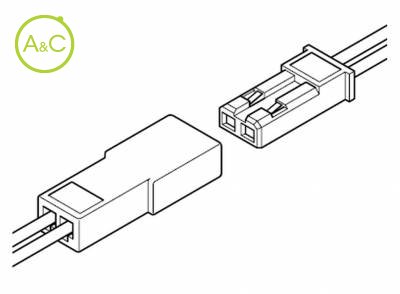

The RCY connector is a compact, 2.5mm (.098") pitch wire-to-wire connector for use with a variety of circuits, from signal circuits to power supply circuits, in electrical equipment which is becoming more and more compact. The employment of a free spring contact method ensures stable contact performance, and superb working efficiency of insertion and removal. Use of a free spring contact for superb creep characteristics The contact section features a free spring contact construction, which effectively minimizes stress (creep) caused by repeated insertion and removal is also smooth, ensuring stable connection performance. Compact design The RCY connector is designed to be compact. When mated, its overall length is just 23.3mm (.917") and its thickness is 4.0mm (.157"). Housing lock Because a lock is provided inside the housing, external force is not applied to the lock. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
