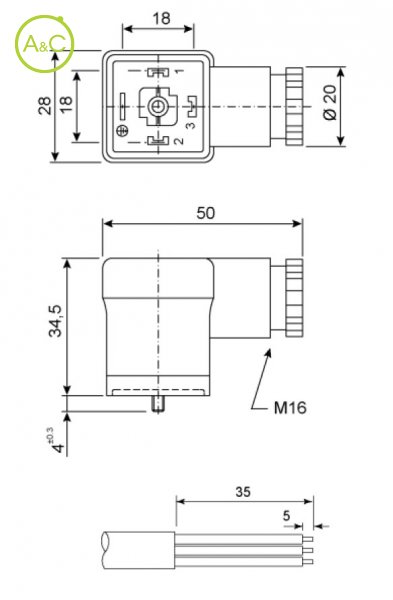

Style A square connector

  • Red Led + diode
Download Datenblatt

Housing Colour

  • Transparent
Article Number VC13 24A3R 3 0 S000 VC13 24A8R 3 0 S000
Protection Degree IP67 IP67
Upper Temperature +70 °C +70 °C
Lower Temperature -40 °C -40 °C
Contact Type 3-point contact 3-point contact
Housing Material PA66 30%GF PA66 30%GF
Circuits Red Led + diode Red Led + diode
Housing Oil Resistance Good Good
Contact Material Nickel plated CuZn Nickel plated CuZn
Max. Wire Section 1,5 mm² 1,5 mm²
Other Characteristics M3 central screw material: zinc plated iron M3 central screw material: zinc plated iron
Voltage Vdc 10 to 50 70 to 250
Max. Currrent 10 A @40°C 10 A @40°C
Clamping Voltage -1 V -1 V
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
