Surface Mount Connector specialist Zierick

For more than 95 years Zierick has been a real specialist when it comes to wire-to-board and board-to-board solutions. American based Zierick is known for its unique surface mount IDC terminals and tab receptacles to connect wires to a PCB. These connector solutions replace the traditional soldering process and increase the durability of your application substantially. Besides their frequent use in many electronic applications, they are also popular in industries like Solid State Lighting, Industrial Control and Automotive Electronics.

For more informatie on Zierick, visit www.zierick.com

Take a look at our lighting brochure that includes various Zierick SMT solutions download

Labour intensive solder process sidetracked

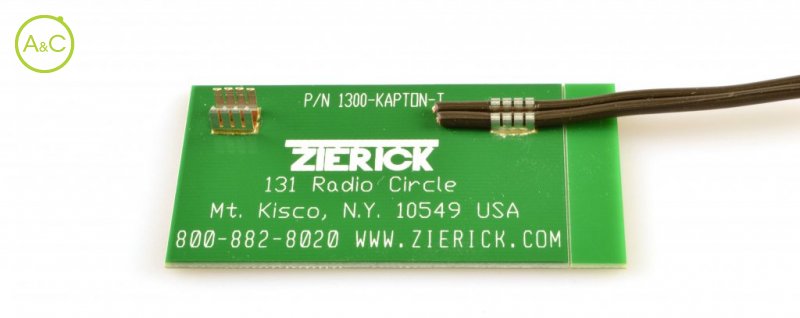

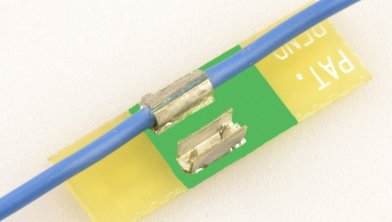

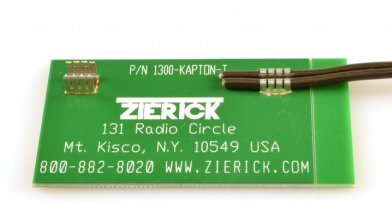

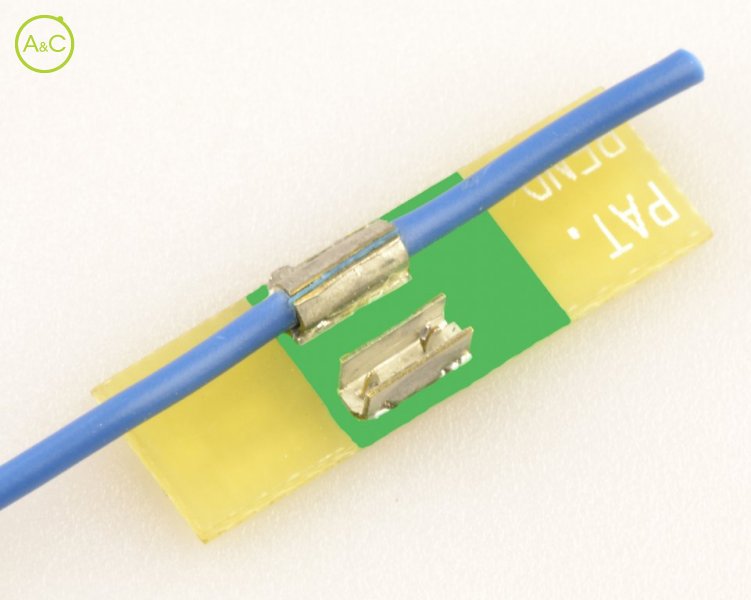

Zierick has developed a highly reliable and fast way to connect a wire to a surface mount printed circuit board. This innovative technology combines the advantages of crimping, insulation piercing and SMT and thereby replaces the labour intensive process of soldering wires manually. This greatly improves the reliability and long term quality of your application. And it works faster.

This connector solution consists out of a surface mount terminal and a terminating machine which feeds the wire into the connector and makes the termination. This is a perfect solution for LED lighting applications where numerous serial connections are made to one single wire.
