Female Connector for FFS Connector
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
Number Of Poles
- 4
- 5
- 6
- 8
- 15
- 21
- 26
Article Number | 04FFS-SP-TF |
Number Of Contacts | 4 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.25mm Pitch Non-ZIF Connector For FFC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.25 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Les propriétés diffèrent selon les variantes et sous-variantes

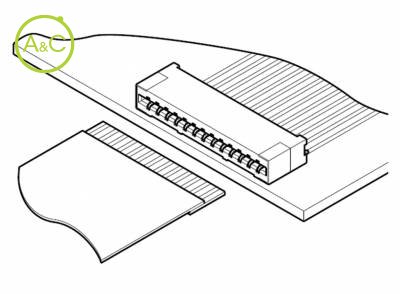

The FFC series connectors are designed for surface mounting (SMT) and to meet the demand for high-density packaging. They are miniature connectors with a height of only 2.8mm (.110"). Their high contact pressure eliminates fretting corrosion and ensures secure connections. Low insertion force make connection easy.
Surface mountable (SMT)
Because of it's small pitch and it's ability to be surface mounted, this connector meets the demand for high-density packaging.
Double-leaf contact mating enhances reliability through redundancy
The contact is made of phosphor bronze that maintains it's spring force in adverse environmental conditions. FFC leads can be inserted with little force, yet the contact pressure is high once they are inserted.
Low profile design
This connector is very small with a mounting height of only 2.8mm (.110").
Simple snap-in action
The FFC is securely connected by simply inserting it's leads into the connector.

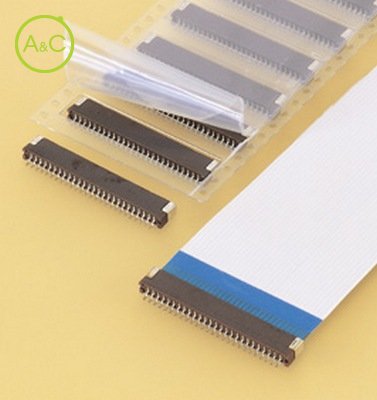

Embossed tape for automatic mounting
The FFS connector is supplied packaged in embossed tape for automatic mounting.
Solder tabs
This connector also features reinforcing solder tabs to prevent lifting of the connector during mating and unmating.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
