Female Connector Tin-plated

  • FHJ CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 16
  • 18
  • 20
  • 21
  • 24
Article Number 04FHJ-SM1-TB
Number Of Contacts 4
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 0.5mm Pitch Non-ZIF Connector For FPC
Connection Type Printed Circuit Board Connectors
Pitch / Style 0.50 mm
Rated Current (ac/dc) 0.5 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Les propriétés diffèrent selon les variantes et sous-variantes

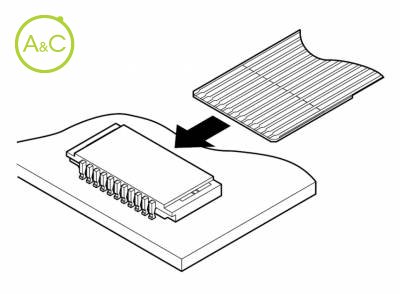

With only 1.2mm (0.47") height, the FHJ connector may be used with a standard 0.3mm (.012") thick FPC. Space-saving design. Two types of solder tails are available i.e. J-lead type tails are folded inward and G-lead type tails are folded outward for the inspection (IPK). Ultra compact mounting space Maintaining the performance of present 0.5mm (.020") pitch non-ZIF connector, more space-saving design has been achieved. J lead type, of which lead with solder is bent inward, and G lead type, that enables soldering inspection (IPK) after mounting, are available. Heat resistant design suitable for surface mounting The housing is made of heat resistant plastic to allow reflow soldering. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
