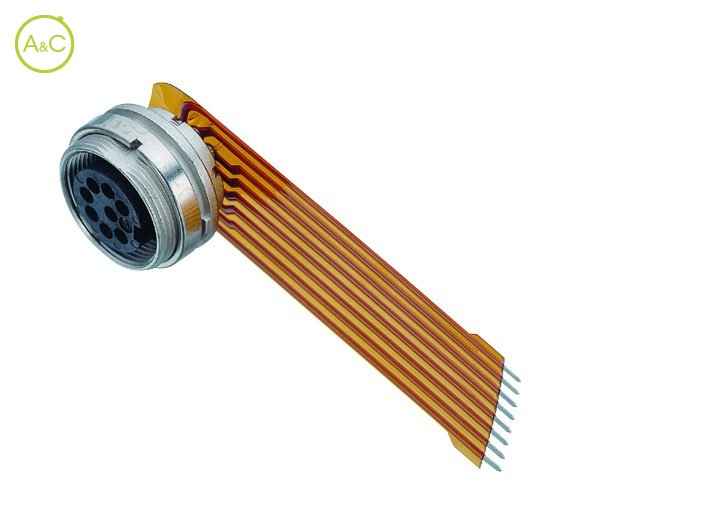

Female panel mount connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

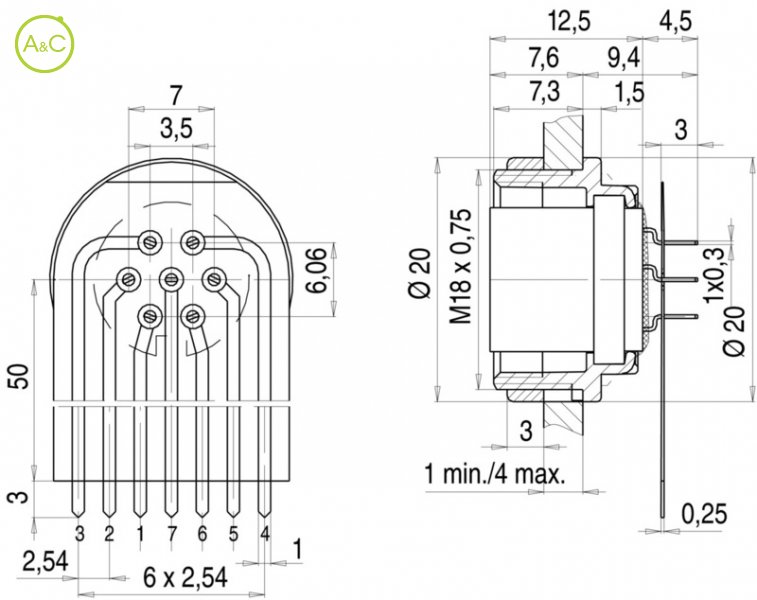

Article Number	09 0328 65 07
Connector Diameter	20 mm
Number Of Contacts	7 contacts
Connector Locking System	Screw (M16)
Termination	Dip solder
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125 (32)
Rated Impuls Voltage	800 V
Pollution Degree	1 (2)*
Overvoltage Categorie	I (II)*
Material Group	III
Rated Current (40°)	5 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	Zinc diecasting nickel plated
Remark**	*In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Fiche produit	Télécharger la fiche produit

Article Number	09 0474 65 08
Connector Diameter	20 mm
Number Of Contacts	8 DIN contacts
Connector Locking System	Screw (M16)
Termination	Dip solder
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	60 (32)
Rated Impuls Voltage	500 V
Pollution Degree	1 (2)*
Overvoltage Categorie	I (II)*
Material Group	III
Rated Current (40°)	5 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	Zinc diecasting nickel plated
Remark**	*In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
