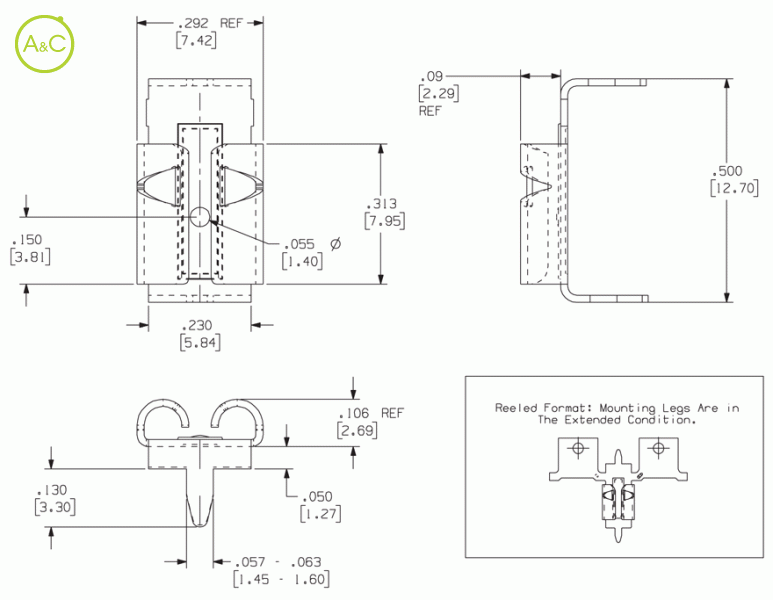

0.205" (5.21mm) and 0.250" (6.35mm) Tab Receptacles

Mating type Horizontal
With dimple 1,40 mm

1093

1093

1093

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Plus d’infos sur cette marque:

Insertion Force-max.

5.0 lbs.
10.0 lbs.

Article Number	1090
Remark*	With steel test tab
Packaging	Loose
Extra Description	With dimple 1,40 mm
Mating Terminal Size	0.250" x 0.025" (6.35mm x 0.64mm) Tab 0.205" x 0.025" (5.21mm x 0.64mm) Tab
Material Thickness / Type	0.016" (0.41mm) C26000 Brass
Standard Finish	100% Tin over Copper
Current Rating	20 Amperes
Mating Type	Horizontal
Mounting Type	Outward or Inward Splay
Mounting Hole Diameter	2 holes 0.063" ±0.003" (1.6mm ±0.076mm) on 0.500" ±0.003" (12.7mm ±0.076mm) centers
Resistance Rating	10mOhm Max
Mating Entry	Horizontal
Temperature Rating	-65° to 85°C
Withdrawal Force-max.	1.0 lb. (4.45N)*
Pieces Per Reel (loose Part No.)	NA
Fiche produit	Télécharger la fiche produit

Article Number	1093
Remark*	With steel test tab
Packaging	Loose
Extra Description	With dimple 1,40 mm
Mating Terminal Size	0.250" x 0.032" (6.35mm x 0.81mm) Tab 0.205" x 0.032" (5.21mm x 0.81mm) Tab
Material Thickness / Type	0.016" (0.41mm) C26000 Brass
Standard Finish	100% Tin over Copper
Current Rating	20 Amperes
Mating Type	Horizontal
Mounting Type	Outward or Inward Splay
Mounting Hole Diameter	2 holes 0.063" ±0.003" (1.6mm ±0.076mm) on 0.500" ±0.003" (12.7mm ±0.076mm) centers
Resistance Rating	10mOhm Max
Mating Entry	Horizontal
Temperature Rating	-65° to 85°C
Withdrawal Force-max.	2.0 lbs. (8.90N)*
Pieces Per Reel (loose Part No.)	NA
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
