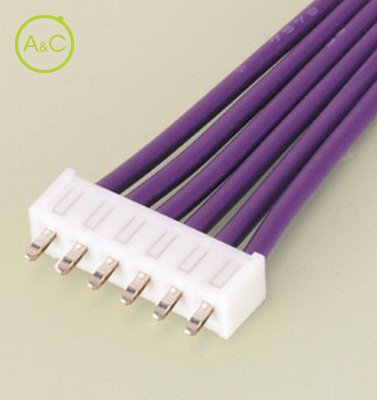

Housing Without Boss

  • SDN CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
Article Number 10P-SDN-A
Number Of Contacts 10
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 3.96mm Pitch Board-in Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 3.96 mm
Rated Current (ac/dc) 7.0 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Les propriétés diffèrent selon les variantes et sous-variantes

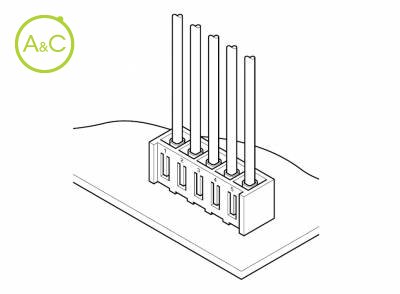

This connector is capable of connecting a wide variety of circuits including signal and power supply circuits. The housing and contact are secured by the housing lance and the contact lance which make use of the contact spring. Thus, the contact is easily inserted into the housing with little force, and is locked securely. Improved solderability due to a wide area of solder tails. Slim, low-profile design The connector has a 3.96mm (.156") pitch that allows the connection of a large capacity (7A) circuit, yet it has a slim, low-profile design, with a mounting height of 7.0mm (.276") and width of 6.2mm (.244"). Easy and secure contact mounting The housing and contact are secured by the housing lance and the contact lance which make use of the contact spring. The contact is easily inserted into the housing with little force, and is locked securely. Improved solderability The part of the contact which is to be inserted into the printed circuit board has a wider area to be soldered. Solderability of the contact is thus improved when mounted onto a printed circuit board. Polarizing boss Connectors with or with out polarizing boss are available. A boss on the bottom of the housing prevents the connector from being mounted on the printed circuit board in reversed polarity. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R50100763 RoHS Compliant
