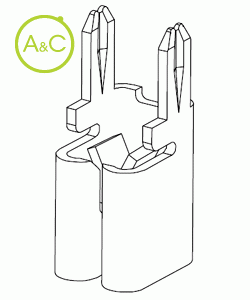

Universal Tab Receptacles for 0.025" (0.64mm) and 0.032" (0.81mm) Thick Terminals

  • Mating entry bottom and horizontal
  • Mounting type is Split leg Outward Splay

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Packaging

  • Loose
  • Reeled
  • Taped
Article Number 1118 1188
Extra Description Mounting type is Split leg Outward Splay Mounting type is Split leg Outward Splay
Mating Terminal Size 0.025" (0.64mm) and 0.032" (0.81mm) 0.015" (0.38mm) and 0.025" (0.64mm)
Material Thickness / Type 0.016" (0.41mm) C26000 Brass 0.016" (0.41mm) C26000 Brass
Standard Finish 100% Tin over Copper 100% Tin over Copper
Current Rating 20 Amperes 20 Amperes
Applicator System Loose: ZPT81-1092 Reeled: Model 9700, 9700 XY Loose: ZPT81-1092 Reeled: Model 9700, 9700 XY
Mating Type Bottom and Horizontal Bottom and Horizontal
Mounting Type Split Leg Outward Splay Split Leg Outward Splay

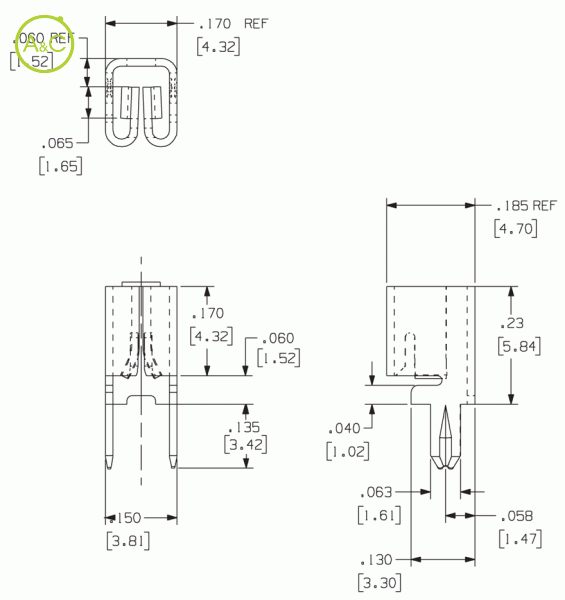

Mounting Hole Diameter 2 holes 0.066" ±0.003" (1.68mm ±0.76mm ) on 0.134" ±0.003" (3.40mm ±0.76mm) centers 2 holes 0.066" ±0.003" (1.68mm ±0.76mm ) on 0.134" ±0.003" (3.40mm ±0.76mm) centers
Resistance Rating 10mOhm Max 10mOhm Max
Temperature Rating -65° to 85°C -65° to 85°C
Pieces Per Reel (loose Part No.) NA NA
Pieces Per Reel (reeled Part No.) / /
Pieces Per Reel (taped Part No.) / /
Fiche produit Télécharger la fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
