Fun Connector for FUN Connector
1.jpg)
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
JST
Number Of Poles
- 13
| Article Number | 13FUN-B-SV |
| Number Of Contacts | 13 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.0mm Pitch Board-in Connector for FFC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Pcb Mount Style | Through-hole Technology (THT) |
Les propriétés diffèrent selon les variantes et sous-variantes

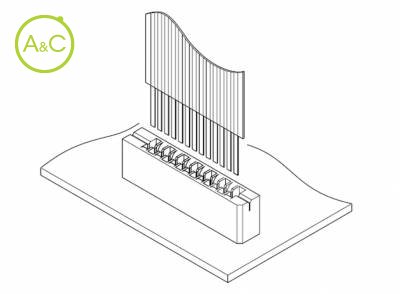

Diagram
Enlarge Diagram

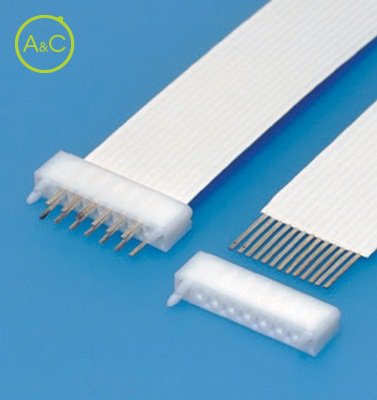

Put the 'FUN' back into connectors with this 1.0mm pitch FFC connector, which was originally developed for use in DVD players, and applications where FFC diSConnection is not required.
This board-in type connector provides direct soldering connection between the FFC and the PC board and therefore, a reduction in assembly time and cost can be realised.
Smaller pitch type
Adoption of the FU connector {1.25mm (.049") pitch} structure leads to the realization of a smaller pitch board-in type connector {1.0mm (.039") pitch}.
Lower assembly costs
Wiring the FFC directory to the PC board will reduce assembly costs.
RoHS Compliant
