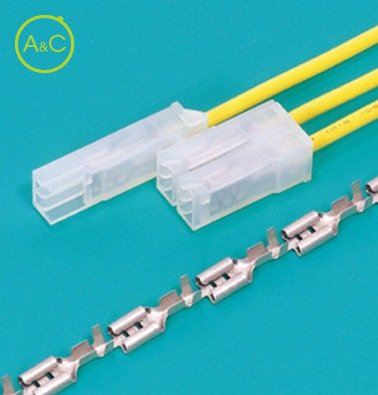

Housing for MS Connector

  • MS Connector
Télécharger la fiche produit

Applicable Wire

  • 22 to 16 AWG
Article Number 3V-187 3V-187L
General Description Microswitch Connector Microswitch Connector
Applicable Wire Size 0.3 to 1.25 (AWG #22 to #16) mm² 0.3 to 1.25 (AWG #22 to #16) mm²
Connection Type Chain Terminals/Splices Chain Terminals/Splices
Rated Current (ac/dc) 10 A 10 A
Rated Voltage (ac/dc) 250 V 250 V
Les propriétés diffèrent selon les variantes et sous-variantes

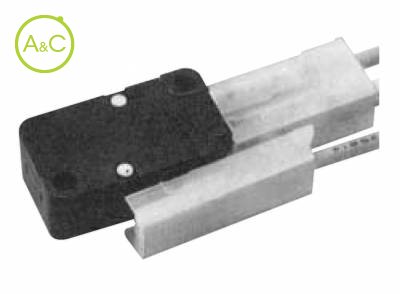

The microswitch connector conforms to the Electrical Appliance and Material Control Law in Japan. The connector can be easily attached to a microswitch with light force, facilitating assembly work. It is also constructed to prevent misinsertion of the contacts when inserting them into the housing. Easy to install, it ensures improved working efficiency in the assembly of harnesses. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
