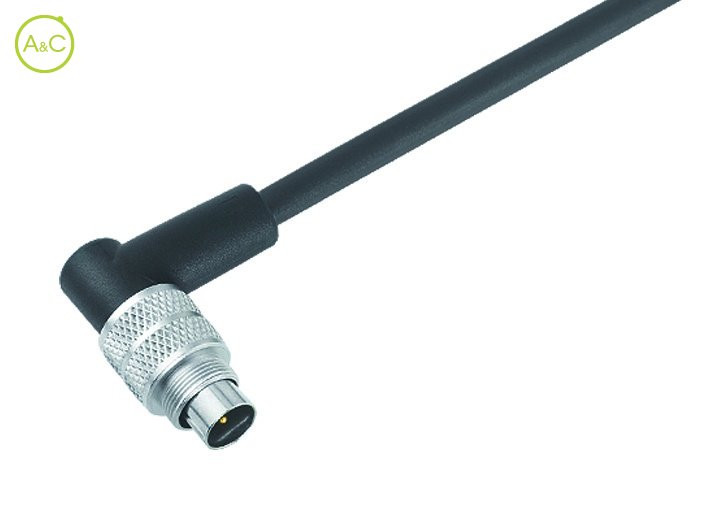

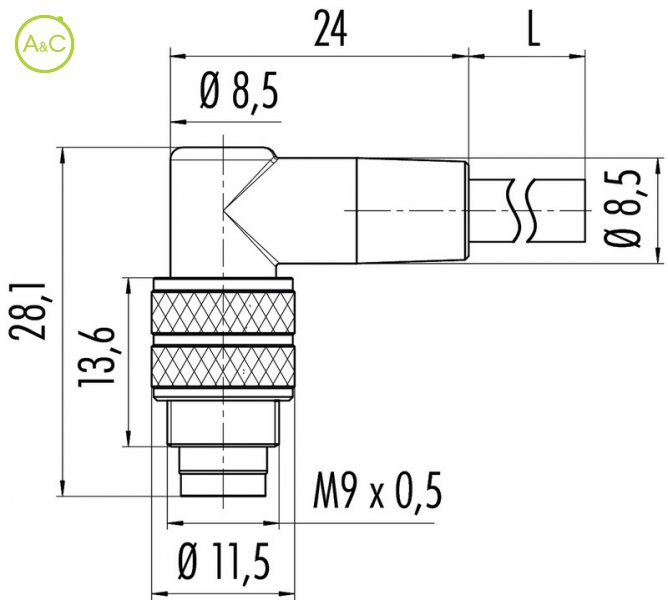

Male angled connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	79 1451 272 03	79 1451 275 03
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	3 contacts	3 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Moulded	Moulded
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP67	IP67
Mating Cycles	>500 times	>500 times
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Material Of Housing	PUR	PUR
Cable Diameter	4,5 mm	4,5 mm
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	79 1455 272 05	79 1455 275 05
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	5 contacts	5 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Moulded	Moulded
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP67	IP67
Mating Cycles	>500 times	>500 times
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	3 A	3 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Material Of Housing	PUR	PUR
Cable Diameter	5 mm	5 mm
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	79 1461 272 08	79 1461 275 08
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	8 contacts	8 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Moulded	Moulded
Wire Section	0.14 mm²	0.14 mm²
Protection Degree	IP67	IP67
Mating Cycles	>500 times	>500 times
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	1 A	1 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Material Of Housing	PUR	PUR
Cable Diameter	5 mm	5 mm
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
