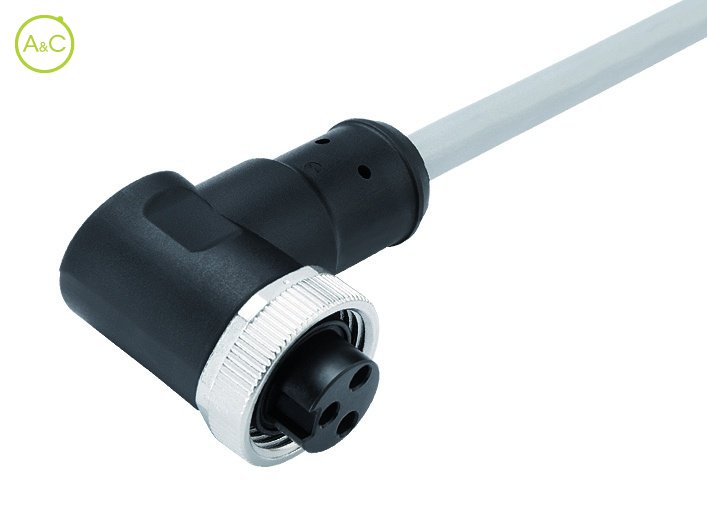

Female cable connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	79 2454 20 03
Connector Diameter	26 mm
Number Of Contacts	3 contacts
Connector Locking System	Screw (7/8"-16 UN)
Termination	Crimp
Wire Section	1.5 mm²
Cable Length	2 mm
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+80 °C
Lower Temperature	-25 °C
Rated Voltage	300
Rated Impuls Voltage	4000 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	12 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PUR
Material Of Housing	PUR
Cable Diameter	7,4 mm
Cable	3 x 1,5 PUR mm²
Cable Jacket Material	PUR
Insulation Wire	TPM
Fiche produit	Télécharger la fiche produit

Article Number	79 2458 20 04
Connector Diameter	26 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (7/8"-16 UN)
Termination	Crimp
Wire Section	1.5 mm²
Cable Length	2 mm
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+80 °C
Lower Temperature	-25 °C
Rated Voltage	300
Rated Impuls Voltage	4000 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	9 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PUR
Material Of Housing	PUR
Cable Diameter	8 mm
Cable	4 x 1,5 PUR mm²
Cable Jacket Material	PUR
Insulation Wire	TPM
Fiche produit	Télécharger la fiche produit

Article Number	79 2462 20 05
Connector Diameter	26 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (7/8"-16 UN)
Termination	Crimp
Wire Section	1.5 mm²
Cable Length	2 mm
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+80 °C
Lower Temperature	-25 °C
Rated Voltage	300
Rated Impuls Voltage	4000 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	9 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PUR
Material Of Housing	PUR
Cable Diameter	8,7 mm
Cable	5 x 1,5 PUR mm²
Cable Jacket Material	PUR
Insulation Wire	TPM
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
