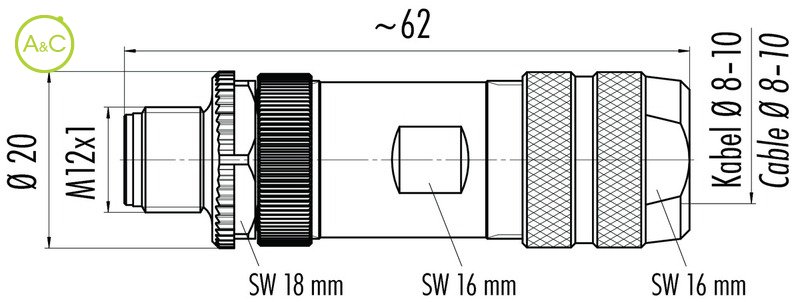

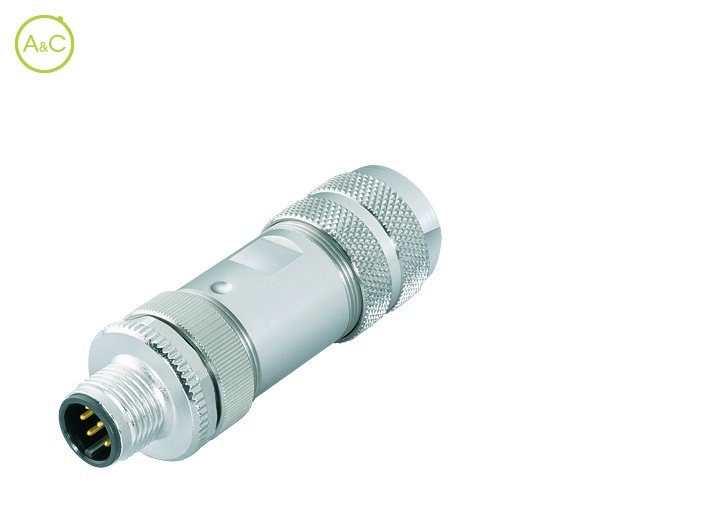

Male cable connector

  • Screw clamp connection, version with shielding ring
  • UL-approval

Number Of Poles

  • 8
Article Number 99 1487 914 08
Connector Diameter 20 mm
Number Of Contacts 8 contacts
Connector Locking System Screw (M12-A)
Termination Screw
Wire Section 0.5 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 60
Rated Impuls Voltage 800 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 2 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing Zinc diecasting nickel plated, brass nickel plated
Cable Outlet 8-10 mm
Fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
