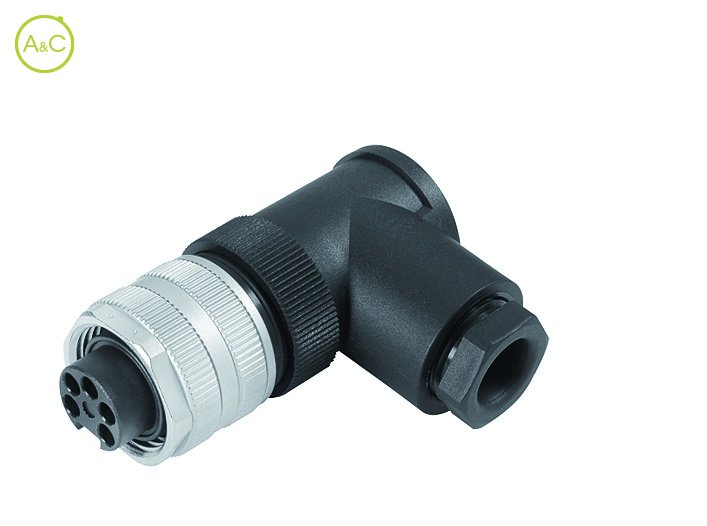

Female angled connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	99 2440 62 03	99 2440 72 03
Connector Diameter	28 mm	28 mm
Number Of Contacts	2+PE contacts	2+PE contacts
Connector Locking System	Screw (7/8"-16 UN)	Screw (7/8"-16 UN)
Termination	Screw	Screw
Wire Section	1.5 mm²	1.5 mm²
Protection Degree	IP67	IP67
Mating Cycles	>50 times	>50 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	300 (UL 600)	300 (UL 600)
Rated Impuls Voltage	4000 V	4000 V
Pollution Degree	3	3
Overvoltage Categorie	III	III
Material Group	III	III
Rated Current (40°)	12 A	12 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PUR/PA (UL 94 HB)	PUR/PA (UL 94 HB)
Material Of Housing	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	99 2442 62 04	99 2442 72 04
Connector Diameter	28 mm	28 mm
Number Of Contacts	3+PE contacts	3+PE contacts
Connector Locking System	Screw (7/8"-16 UN)	Screw (7/8"-16 UN)
Termination	Screw	Screw
Wire Section	1.5 mm²	1.5 mm²
Protection Degree	IP67	IP67
Mating Cycles	>50 times	>50 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	300 (UL 600)	300 (UL 600)
Rated Impuls Voltage	4000 V	4000 V
Pollution Degree	3	3
Overvoltage Categorie	III	III
Material Group	III	III
Rated Current (40°)	9 A	9 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PUR/PA (UL 94 HB)	PUR/PA (UL 94 HB)
Material Of Housing	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	99 2444 62 05	99 2444 72 05	99 2444 63 05	99 2444 73 05
Connector Diameter	28 mm	28 mm	28 mm	28 mm
Number Of Contacts	4+PE contacts	4+PE contacts	4+PE contacts	4+PE contacts
Connector Locking System	Screw (7/8"-16 UN)	Screw (7/8"-16 UN)	Screw (7/8"-16 UN)	Screw (7/8"-16 UN)
Termination	Screw	Screw	Screw	Screw
Wire Section	1.5 mm²	1.5 mm²	2.5 mm²	2.5 mm²
Protection Degree	IP67	IP67	IP67	IP67
Mating Cycles	>50 times	>50 times	>50 times	>50 times
Upper Temperature	+85 °C	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C	-25 °C
Rated Voltage	300 (UL 600)	300 (UL 600)	300 (UL 600)	300 (UL 600)
Rated Impuls Voltage	4000 V	4000 V	4000 V	4000 V
Pollution Degree	3	3	3	3
Overvoltage Categorie	III	III	III	III
Material Group	III	III	III	III
Rated Current (40°)	9 A	9 A	9 A	9 A
Max. Contact Resistance	3 mΩ	3 mΩ	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)	Au (Gold)	Au (Gold)
Material Of Insert	PUR/PA (UL 94 HB)	PUR/PA (UL 94 HB)	PUR/PA (UL 94 HB)	PUR/PA (UL 94 HB)
Material Of Housing	PBT (UL 94 V-0)	PBT (UL 94 V-0)	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
