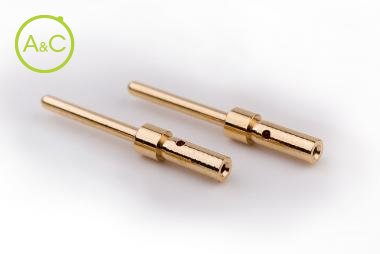

Mixed layout crimp contacts

  • Signal contacts
Télécharger la fiche produit

Awg Range

  • AWG 18
  • AWG 20
  • AWG 22
  • AWG 24-28
Article Number C051800G2 C061800G2
Contact Plating Mating area: Au over Ni Termination area: Sn over Ni Mating area: Au over Ni Termination area: Sn over Ni
Contact Material CU-alloy CU-alloy
Remark* G2: preferred version G1 & G3 on request G2: preferred version G1 & G3 on request
Current Rating 5 5
Gender Male Female
Test Voltage U Eff Contact-Contact: 1000 V Contact-Ground: 1200 Contact-Contact: 1000 V Contact-Ground: 1200
Quality Class* G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles
Les propriétés diffèrent selon les variantes et sous-variantes
