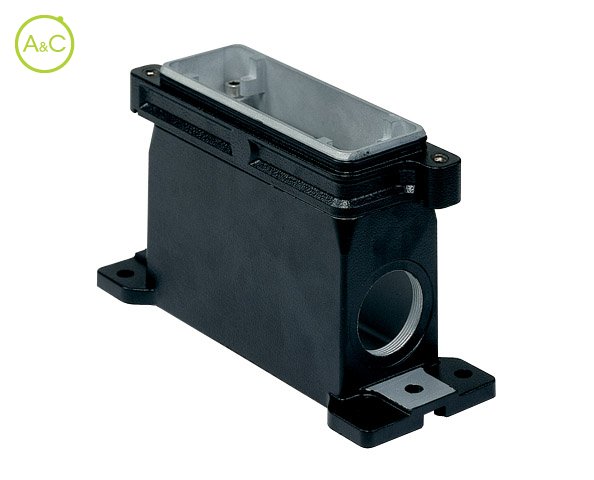

Surface mounting housings, screw locking

  • Aluminium
  • 1xPG36
Télécharger la fiche produit
  • General
Article Number CGP 16.36
Protection Degree IP68
Material Housing Aluminium
Height 121 mm
Length 189
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDHS 27 P + PE; CX 6+12 P + PE
Locking Mechanism Screw
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 58 mm
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CGC 16
Covers for screw locking
