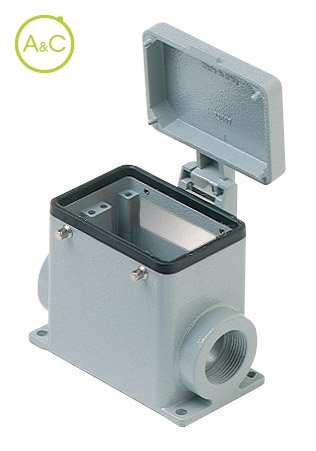

Surface mounting housings

With 4 pegs and cover, side entry
Aluminium, PG entry

CHP 50 CS

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

Entry

1x21PG
1x29PG
2x21PG
2x29PG

Article Number	CHP 50 CS*
Protection Degree	IP65
Material Housing	Aluminium
Height	82 mm
Remark*	May be combined with enclosures: CHO 50 X;cao 50 X;CAV 50 X; MHO 50 X;MAO 50 X;MFO 50 X;MAV 50 X;MFV 50 X
Length	106
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 50 P + PE; CDD 76 P + PE; CSAH 32 P + PE; CDA 32 P + PE; CDC 32 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	57.3 mm

Article Number	CHP 50 CS29*
Protection Degree	IP65
Material Housing	Aluminium
Height	82 mm
Remark*	May be combined with enclosures: CHO 50 X;cao 50 X;CAV 50 X; MHO 50 X;MAO 50 X;MFO 50 X;MAV 50 X;MFV 50 X
Length	106
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 50 P + PE; CDD 76 P + PE; CSAH 32 P + PE; CDA 32 P + PE; CDC 32 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	57.3 mm

Article Number	CHP 50 CS2*
Protection Degree	IP65
Material Housing	Aluminium
Height	82 mm
Remark*	May be combined with enclosures: CHO 50 X;cao 50 X;CAV 50 X; MHO 50 X;MAO 50 X;MFO 50 X;MAV 50 X;MFV 50 X
Length	106
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 50 P + PE; CDD 76 P + PE; CSAH 32 P + PE; CDA 32 P + PE; CDC 32 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	57.3 mm

Article Number	CHP 50 CS229*
Protection Degree	IP65
Material Housing	Aluminium
Height	82 mm
Remark*	May be combined with enclosures: CHO 50 X;cao 50 X;CAV 50 X; MHO 50 X;MAO 50 X;MFO 50 X;MAV 50 X;MFV 50 X
Length	106
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 50 P + PE; CDD 76 P + PE; CSAH 32 P + PE; CDA 32 P + PE; CDC 32 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	57.3 mm

Les propriétés diffèrent selon les variantes et sous-variantes

Accessoires

Covers with 2 levers
