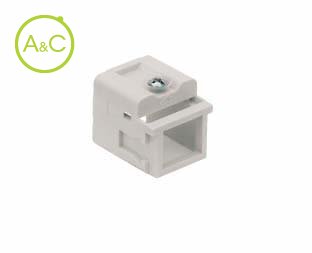

Adaptor for RJ45 female connector in fixed enclosures

Avez-vous des questions sur ce produit?

Télécharger la fiche produit

Plus d’infos sur cette marque:

Article Number	CJ KF*
Number Of Poles	10
Connection Type	Crimp connection
Contact Type	Female
Remark*	Can only be used in I/IAP enclosures
Extra Information	Contact insert without contacts
Ambient Lower Temperature	-40 °C
Ambient Upper Temperature	120 °C
Min. Cross Section Without End Sleeve	0.34 mm²
Max. Cross Section Without End Sleeve	0.38 mm²
Required Housing	High protection IP68 size 21.21
Inflammability Class Of Insulation Material Acc. With Ul94	V0
Material Insert	Thermoplastic
Max. Rated Current	2.1 A
Nominal Rated Voltage	50 V

Les propriétés diffèrent selon les variantes et sous-variantes

Accessoires

RJ 45 female connector with 8 data contacts

RJ45 female connector with 8 data contacts & 2 power contacts

RJ 45 female connector with 4 data contacts

RJ45 female connector with 4 data contacts & 2 power contacts

Cable stripper, cuts the cable steath and releases the wires in a single operation

RJ45 CJ series plug insert crimp pliers
