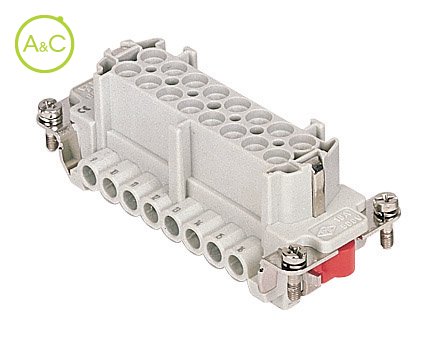

Inserts, 12+4(aux)P + PE, Screw terminal connection

  • Female inserts with female contacts
  • Silver plated contacts, Direct without plate
Télécharger la fiche produit
  • General
Article Number CMEF 06 TX
Pollution Degree 3
Number Of Poles 12
Connection Type Screw connection
Contact Type Female
Extra Information With protective conductor
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 125 °C
Pin Numbers 1-16
Min. Cross Section With End Sleeve 0.25 mm²
Max. Cross Section With End Sleeve 2.5 mm²
Required Housing C-type size 77.62
W-type size 77.62
Diameter Male Contact 2.5 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Material Contact Brass
Plating Of Contact Silver
Max. Rated Current 16 A
Nominal Rated Voltage 830 V
Over Voltage Category III
Rated Surge Voltage 8 kV
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CR VNTG
Screws for second earth terminal
CR 20*
Single code pins for 6 codings
CR 20 D*
Single code pins for 6 codings
CRM*
Male double coding and guide pins, for 16 codes
CRM D*
Male double coding and guide pins, for 16 codes
CRF*
Female double coding and guide pins, for 16 codes
CRF D*
Female double coding and guide pins, for 16 codes
CRM
Male coding and guide pin, for 72 codes
CRM D
Male coding and guide pin, for 72 codes
CRF
Female coding and guide pin, for 72 codes
CRF D
Female coding and guide pin, for 72 codes
CR 72
Single coding and guide pin, for 72 codes
CR 72 D
Single coding and guide pin, for 72 codes
