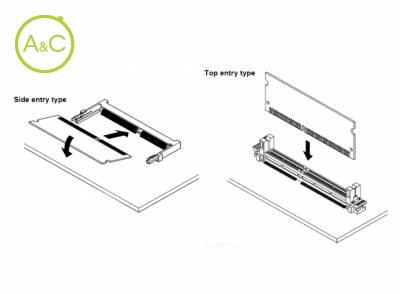

Side Entry Type Connector

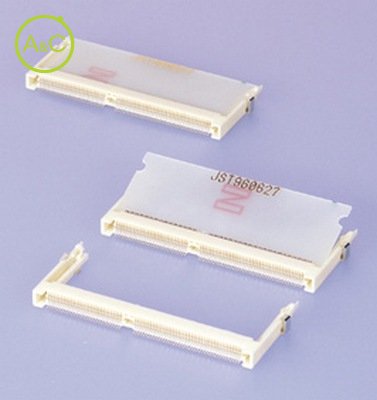

  • DM-144P CONNECTOR
Télécharger la fiche produit
  • General
Article Number DM-3B1-N1210
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 0.8mm Pitch Socket for S.O.DIMM
Connection Type Printed Circuit Board Connectors
Pitch / Style 0.80 mm
Rated Current (ac/dc) 0.5 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Surface Mount Technology (SMT)
Les propriétés diffèrent selon les variantes et sous-variantes
Standardized by the JEDEC (MO-160). The DM connector is the straight type of the DIMM socket, applicable to the module PC board whose operating voltage is 3.3V. Extremely small space for mounting on the board The DM connector is applicable to 64Bit data bus, with the same size as the 4Byte S.O.DIMM, and half size of the 8Byte DIMM. Standards UL Recognized E60389 RoHS Compliant
