Plug for FCT Connector

FCT CONNECTOR

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

JST

Number Of Poles

Article Number	FCTP-26V-S
Number Of Contacts	26
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm Pitch Disconnectable Connector for Flat Cables
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)
Remark*	Secure locking device

Article Number	FCTP-34V-S
Number Of Contacts	34
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm Pitch Disconnectable Connector for Flat Cables
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)
Remark*	Secure locking device

Article Number	FCTP-40V-S
Number Of Contacts	40
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm Pitch Disconnectable Connector for Flat Cables
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)
Remark*	Secure locking device

Article Number	FCTP-60V-S
Number Of Contacts	60
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm Pitch Disconnectable Connector for Flat Cables
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)
Remark*	Secure locking device

Les propriétés diffèrent selon les variantes et sous-variantes

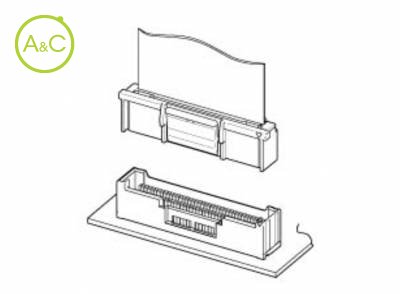

This connector realizes high cost performance, to be designed with the new connector concept that the conductors of flat cable that was fixed up in the plug housing are directly touched to the base contacts. Countermeasure to short circuit by whisker High reliability design by both side contact Low insertion force With secure locking device RoHS Compliant
