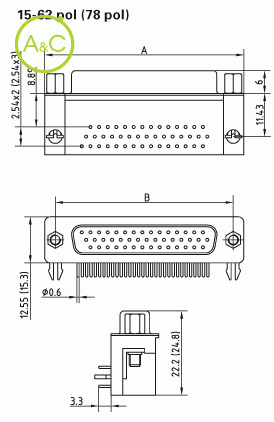

High Density Dip solder 90°

Tin plated metal shell
With stamped contacts

HDT 15 56 G3

HDT 15 56 G3

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

Number Of Poles

15
26
44
62
78

Article Number	HDT 15 56 G3	HT 15 66 G3
Number Of Contacts	15	15
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Housing Material	St. tinned	St. tinned
Contact Material	Cu alloy	Cu alloy
Insulation Resistance	≥10 MΩ	≥10 MΩ
Extra Information	The contact density exceeds of the density of standard D-Sub connectors by approx. 60% Available as complete set with plastic bracket, grounding clip and UNC 4-40 thread	The contact density exceeds of the density of standard D-Sub connectors by approx. 60% Available as complete set with plastic bracket, grounding clip and UNC 4-40 thread
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	PBT GF UL 94-V0	PBT GF UL 94-V0
Mating/unmating Force Fully Loaded Connector	≤50	≤50
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60
Current Rating At 20°c	Max. 2	Max. 2
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles

Article Number	HDT 26 56 G3	HT 26 66 G3
Number Of Contacts	26	26
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Housing Material	St. tinned	St. tinned
Contact Material	Cu alloy	Cu alloy
Insulation Resistance	≥10 MΩ	≥10 MΩ
Extra Information	The contact density exceeds of the density of standard D-Sub connectors by approx. 60% Available as complete set with plastic bracket, grounding clip and UNC 4-40 thread	The contact density exceeds of the density of standard D-Sub connectors by approx. 60% Available as complete set with plastic bracket, grounding clip and UNC 4-40 thread
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	PBT GF UL 94-V0	PBT GF UL 94-V0
Mating/unmating Force Fully Loaded Connector	≤84	≤84
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60
Current Rating At 20°c	Max. 2	Max. 2
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles

Article Number	HDT 44 56 G3	HT 44 66 G3
Number Of Contacts	44	44
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Housing Material	St. tinned	St. tinned
Contact Material	Cu alloy	Cu alloy
Insulation Resistance	≥10 MΩ	≥10 MΩ
Extra Information	The contact density exceeds of the density of standard D-Sub connectors by approx. 60% Available as complete set with plastic bracket, grounding clip and UNC 4-40 thread	The contact density exceeds of the density of standard D-Sub connectors by approx. 60% Available as complete set with plastic bracket, grounding clip and UNC 4-40 thread
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	PBT GF UL 94-V0	PBT GF UL 94-V0
Mating/unmating Force Fully Loaded Connector	≤120	≤120
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60
Current Rating At 20°c	Max. 2	Max. 2
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles

Article Number	HDT 62 56 G3	HT 62 66 G3
Number Of Contacts	62	62
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Housing Material	St. tinned	St. tinned
Contact Material	Cu alloy	Cu alloy
Insulation Resistance	≥10 MΩ	≥10 MΩ
Extra Information	The contact density exceeds of the density of standard D-Sub connectors by approx. 60% Available as complete set with plastic bracket, grounding clip and UNC 4-40 thread	The contact density exceeds of the density of standard D-Sub connectors by approx. 60% Available as complete set with plastic bracket, grounding clip and UNC 4-40 thread
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	PBT GF UL 94-V0	PBT GF UL 94-V0
Mating/unmating Force Fully Loaded Connector	≤170	≤170
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60
Current Rating At 20°c	Max. 2	Max. 2
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles

Article Number	HDT 78 56 G3	HT 78 66 G3
Number Of Contacts	78	78
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Housing Material	St. tinned	St. tinned
Contact Material	Cu alloy	Cu alloy
Insulation Resistance	≥10 MΩ	≥10 MΩ
Extra Information	The contact density exceeds of the density of standard D-Sub connectors by approx. 60% Available as complete set with plastic bracket, grounding clip and UNC 4-40 thread	The contact density exceeds of the density of standard D-Sub connectors by approx. 60% Available as complete set with plastic bracket, grounding clip and UNC 4-40 thread
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	PBT GF UL 94-V0	PBT GF UL 94-V0
Mating/unmating Force Fully Loaded Connector	≤200	≤200
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60
Current Rating At 20°c	Max. 2	Max. 2
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles
