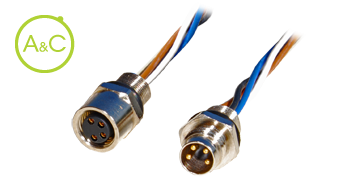

Male round receptacle

REE - REEM 0300

REE - REEM 0300

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

Number Of Poles

3
4
5

Article Number	REEM 0300 2A1 0200 000
Number Of Contacts	3
Protection Degree	IP67 (only frontal side)*
Upper Temperature	+80 °C
Lower Temperature	-40 °C
Housing Material	Brass nickel plated
Contact Material	Golden over nickel plated CuZn
Voltage Vdc	1 to 60
Voltage Vac	1 to 60
Max. Currrent	3 A @40°C
Contact Gender	M
Ground Pole	No
Max. Number Wires	3
Wire Colour	bn1, bu3, bk4
Coding	A
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	REEM 0400 2A1 0200 000
Number Of Contacts	4
Protection Degree	IP67 (only frontal side)*
Upper Temperature	+80 °C
Lower Temperature	-40 °C
Housing Material	Brass nickel plated
Contact Material	Golden over nickel plated CuZn
Voltage Vdc	1 to 30
Voltage Vac	1 to 30
Max. Currrent	3 A @40°C
Contact Gender	M
Ground Pole	No
Max. Number Wires	4
Wire Colour	bn1, wh2, bu3, bk4
Coding	A
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	REEM 0500 2A1 0200 000
Number Of Contacts	5
Protection Degree	IP67 (only frontal side)*
Upper Temperature	+80 °C
Lower Temperature	-40 °C
Housing Material	Brass nickel plated
Contact Material	Golden over nickel plated CuZn
Voltage Vdc	1 to 30
Voltage Vac	1 to 30
Max. Currrent	3 A @40°C
Contact Gender	M
Ground Pole	No
Max. Number Wires	5
Wire Colour	bn1, wh2, bu3, bk4, gy5
Coding	B
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Les propriétés diffèrent selon les variantes et sous-variantes
