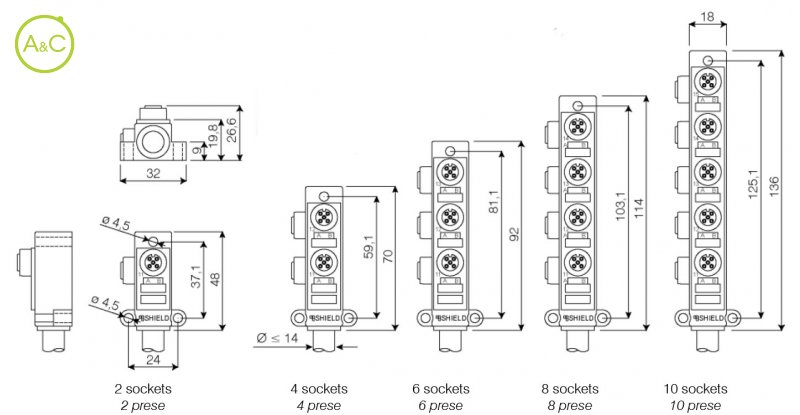

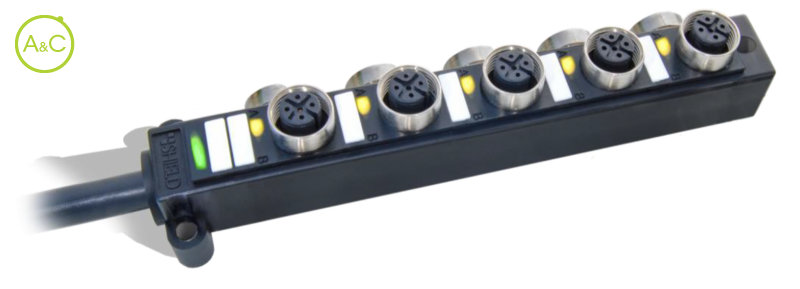

Angled, double line, L-left profile, from 2 to 10 sockets, 1 signal each socket

Without LED

SD40 - SD401N7 00100

SD40 - SD401N7 00100

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

Socket Quantity

2
4
6
8
10

Article Number	SD401N7 00100 547 5000	SD401N7 00130 547 5000
Number Of Contacts	4	5
Protection Degree	IP65*	IP65*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-25 °C	-25 °C
Housing Material	TPU	TPU
Circuits	Without LED	Without LED
Housing Oil Resistance	Very good	Very good
Contact Material	Nickel & golden plated CuZn	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	1 to 250 Max. power 200 W	1 to 60 Max. power 200 W
Voltage With Pollution Degree 3 Vac **	1 to 250 Max. power 200 W	1 to 60 Max. power 200 W
Max. Currrent	8 A for common wires, 4 A each socket, 2 A each signal A @40°C	8 A for common wires, 4 A each socket, 2 A each signal A @40°C
Control Type	Cable	Cable
Coding	A	A
Connected Terminals	1= V+, 3= V-, 4= A signal	1= V+, 3= V-, 4= A signal, 5= ground
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark**	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SD402N7 00100 839 5000	SD402N7 00130 839 5000
Number Of Contacts	4	5
Protection Degree	IP65*	IP65*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-25 °C	-25 °C
Housing Material	TPU	TPU
Circuits	Without LED	Without LED
Housing Oil Resistance	Very good	Very good
Contact Material	Nickel & golden plated CuZn	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	1 to 250 Max. power 200 W	1 to 60 Max. power 200 W
Voltage With Pollution Degree 3 Vac **	1 to 250 Max. power 200 W	1 to 60 Max. power 200 W
Max. Currrent	8 A for common wires, 4 A each socket, 2 A each signal A @40°C	8 A for common wires, 4 A each socket, 2 A each signal A @40°C
Control Type	Cable	Cable
Coding	A	A
Connected Terminals	1= V+, 3= V-, 4= A signal	1= V+, 3= V-, 4= A signal, 5= ground
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark**	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SD403N7 00100 837 5000	SD403N7 00130 837 5000
Number Of Contacts	4	5
Protection Degree	IP65*	IP65*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-25 °C	-25 °C
Housing Material	TPU	TPU
Circuits	Without LED	Without LED
Housing Oil Resistance	Very good	Very good
Contact Material	Nickel & golden plated CuZn	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	1 to 250 Max. power 200 W	1 to 60 Max. power 200 W
Voltage With Pollution Degree 3 Vac **	1 to 250 Max. power 200 W	1 to 60 Max. power 200 W
Max. Currrent	8 A for common wires, 4 A each socket, 2 A each signal A @40°C	8 A for common wires, 4 A each socket, 2 A each signal A @40°C
Control Type	Cable	Cable
Coding	A	A
Connected Terminals	1= V+, 3= V-, 4= A signal	1= V+, 3= V-, 4= A signal, 5= ground
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark**	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SD404N7 00100 843 5000	SD404N7 00130 843 5000
Number Of Contacts	4	5
Protection Degree	IP65*	IP65*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-25 °C	-25 °C
Housing Material	TPU	TPU
Circuits	Without LED	Without LED
Housing Oil Resistance	Very good	Very good
Contact Material	Nickel & golden plated CuZn	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	1 to 250 Max. power 200 W	1 to 60 Max. power 200 W
Voltage With Pollution Degree 3 Vac **	1 to 250 Max. power 200 W	1 to 60 Max. power 200 W
Max. Currrent	8 A for common wires, 4 A each socket, 2 A each signal A @40°C	8 A for common wires, 4 A each socket, 2 A each signal A @40°C
Control Type	Cable	Cable
Coding	A	A
Connected Terminals	1= V+, 3= V-, 4= A signal	1= V+, 3= V-, 4= A signal, 5= ground
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark**	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SD405N7 00100 872 5000	SD405N7 00130 872 5000
Number Of Contacts	4	5
Protection Degree	IP65*	IP65*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-25 °C	-25 °C
Housing Material	TPU	TPU
Circuits	Without LED	Without LED
Housing Oil Resistance	Very good	Very good
Contact Material	Nickel & golden plated CuZn	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	1 to 250 Max. power 200 W	1 to 60 Max. power 200 W
Voltage With Pollution Degree 3 Vac **	1 to 250 Max. power 200 W	1 to 60 Max. power 200 W
Max. Currrent	8 A for common wires, 4 A each socket, 2 A each signal A @40°C	8 A for common wires, 4 A each socket, 2 A each signal A @40°C
Control Type	Cable	Cable
Coding	A	A
Connected Terminals	1= V+, 3= V-, 4= A signal	1= V+, 3= V-, 4= A signal, 5= ground
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark**	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution
