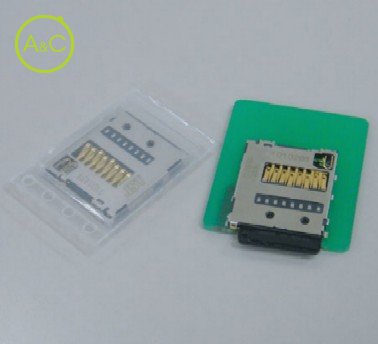

Reverse Connector for Micro SD Card

  • SDHR CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 8
Article Number SDHR-8BRS-K-363-A0-P-ETB (HF)
Number Of Contacts 8
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description Micro SD Card Connector (Reverse Mounting Type)
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.1 mm
Rated Current (ac/dc) 0.5 A
Rated Voltage (ac/dc) 100 V
Standard Micro SD
Pcb Mount Style Surface Mount Technology (SMT)
Les propriétés diffèrent selon les variantes et sous-variantes

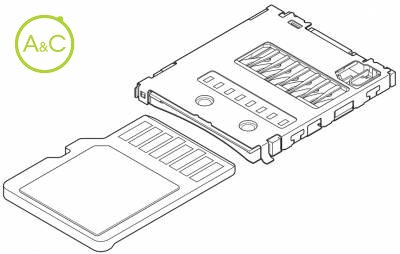

JST introduces a new reverse mounting type Micro SD Card connector, the SDHR connector, to its broad range of SD card connectors. With push-push style for easy and smooth card insertion and extraction, this connector offers a low profile mounting height of only 1.45mm and features a detection switch that detects whether or not a memory card is currently inserted, it also features a wiping function that ensures a good electrical contact. The Micro SD is currently the worlds smallest memory card storage system, designed for storing media files for small compact devices e.g. mobile phones. Reverse Mounting Type Mounting height 1.45mm Space saving Push push type Halogen-free EC directive 2002/95/EC (the RoHS Directive) - Compliant
