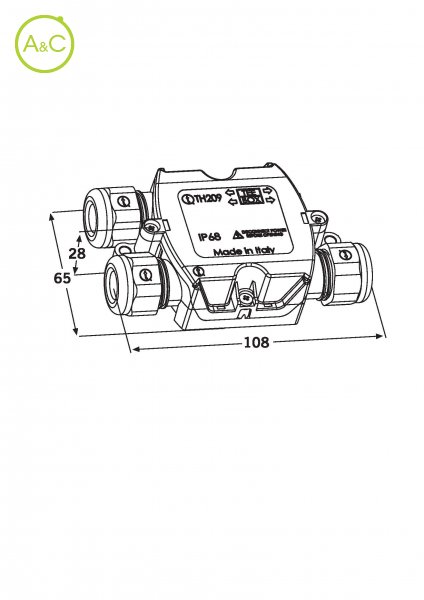

High protection Junction boxes empty and with terminal blocks
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Techno
Techno
Protection Degree
- IP54
- IP68
| Article Number | THA.209.D1A | THA.209.E1A |
| Upper Temperature | +125 °C | +125 °C |
| Lower Temperature | -40 °C | -40 °C |
| Inner Dimensions | 43 mm x 53.5 mm x 24 mm | 43 mm x 53.5 mm x 24 mm |
| Cable Diameter Min-max A | 7,0 -14,0 mm | 7,0 - 9,5 mm |
| Cable Diameter Min-max B | 7,0 -14,0 mm | 7,0 -14,0 mm |
| Terminal Block | TH026 / TH029 / TH032 / TH027 | TH026 / TH029 / TH032 / TH027 |
| Cable Entries/exits | 3 ways | 3 ways |
| T Marking | T85 16 A °C | T85 16 A °C |
| Protection Degree Details | 0,5 bar (5 m / 3 h) | 0,5 bar (5 m / 3 h) |
| Body | PA66 UL94 V2 GWT 850°C black - grey RAL 7035 | PA66 UL94 V2 GWT 850°C black - grey RAL 7035 |
| Lock Nuts | PA66 FV UL94 V0 GWT 960°C black - grey RAL 7035 | PA66 FV UL94 V0 GWT 960°C black - grey RAL 7035 |
| Grommets | TPE | TPE |
| Co-moulded Seal Of Lid | SEBS | SEBS |
| Fixing Screws Of Lid | M3 x 12,0 mm inox stainless steel | M3 x 12,0 mm inox stainless steel |
| Standards | TEST REPORT EN60529:1991+A1:2000 IP54: 2.6 l/min 10 min IP68: 5 MT-PROOF 3 h IP66: 100 l/min 3 min EN60998-1:2004 heating resistance | TEST REPORT EN60529:1991+A1:2000 IP54: 2.6 l/min 10 min IP68: 5 MT-PROOF 3 h IP66: 100 l/min 3 min EN60998-1:2004 heating resistance |
Les propriétés diffèrent selon les variantes et sous-variantes
